PCB manufacturing time depends on board complexity, layer count, materials, and factory process capability. Under standard conditions, a simple PCB can be completed in a few days, while complex multilayer boards require longer, controlled production cycles.

From a manufacturing perspective, PCB lead time is not a single duration. It is the sum of multiple process stages carried out across different workshops, each with its own technical and quality requirements.

What factors determine PCB manufacturing time?

PCB lead time is influenced by several technical and process-related factors.

Key variables include layer count, board size, material type, trace width and spacing, hole density, and surface finish. Single-layer and double-layer PCBs follow a simpler flow, while multilayer boards require additional inner-layer processing and lamination cycles.

Factory capacity and process maturity also play a major role. Facilities with in-house lamination, drilling, and surface finish lines can control scheduling more effectively. Clear engineering documentation and stable material supply further reduce waiting time between processes.

How long does a simple PCB usually take?

Simple PCBs typically refer to single-layer or double-layer boards with standard materials and finishes.

Under normal factory conditions, these boards can be completed in 3 to 5 working days. The process includes material cutting, imaging, etching, drilling, solder mask, surface finish, and electrical testing.

Because the process flow is short and does not involve lamination, production risk is lower. Workshop scheduling is also more flexible, allowing faster turnaround when materials and files are ready.

How long does a multilayer PCB take to manufacture?

Multilayer PCBs require additional steps, which extend the production cycle.

A standard 4-layer PCB usually takes 6 to 10 working days. Boards with 6 layers or more may require 10 to 15 working days, depending on stack-up complexity and drilling density.

Inner layer imaging, lamination pressing, and registration checks add time but are essential for reliability. Each lamination cycle must cool and stabilize before drilling and plating can proceed. These controlled pauses are critical for dimensional accuracy and long-term board stability.

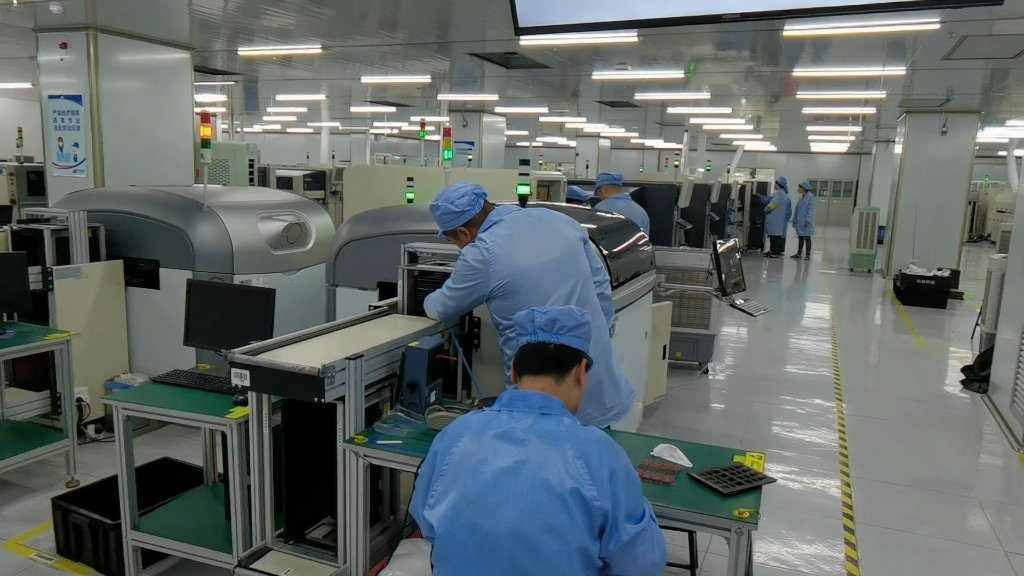

How do factory workshops affect lead time?

PCB manufacturing is distributed across specialized workshops, and coordination between them directly affects delivery speed.

Typical workshops include inner-layer processing, lamination, drilling, plating, outer-layer imaging, solder mask, surface finishing, and testing. Efficient factories design production flow to minimize waiting time between workshops.

Factories with integrated production lines and clear scheduling systems can overlap certain processes, reducing idle time. Stable equipment performance and trained operators also prevent rework, which is a major cause of lead time extension.

Can PCB manufacturing time be shortened?

Lead time can be shortened under controlled conditions, but not by skipping critical processes.

For urgent projects, expedited production may reduce standard lead time by prioritizing the order and running extended shifts. Simple boards may be completed within 24 to 48 hours, while multilayer boards can be shortened by several days.

However, process steps such as lamination curing, plating thickness build-up, and electrical testing cannot be rushed beyond safe limits. Professional manufacturing balances speed with process discipline to avoid hidden quality risks.

How does testing and quality control affect delivery time?

Testing and inspection are often underestimated when estimating PCB lead time.

Electrical testing, visual inspection, and final quality review typically add 1 to 2 days to the schedule. These steps ensure that the PCB meets design intent and manufacturing standards.

Boards that fail inspection must be reworked or scrapped, which can significantly extend delivery time. Strong process control earlier in production reduces these delays and stabilizes overall lead time.

Conclusion

PCB manufacturing time varies based on complexity, materials, and factory capability. Simple boards can be completed in a few days, while multilayer PCBs require one to two weeks under standard production conditions.

A well-organized factory with integrated workshops, disciplined process control, and stable material management can deliver predictable lead times without sacrificing quality. Understanding how each manufacturing step contributes to the schedule helps set realistic expectations and ensures reliable PCB production from start to finish.
