A circuit board is considered “fried” when electrical or thermal damage permanently destroys its ability to function safely and reliably. This type of damage is usually caused by overvoltage, short circuits, overheating, or severe component failure, and it cannot be corrected through normal repair or rework.

A fried circuit board often shows clear warning signs, but in some cases the damage is internal and only confirmed through testing. In manufacturing and quality control, identifying a fried PCB early prevents repeated failures, wasted repair effort, and downstream risk.

Understanding how to recognize a fried circuit board requires looking at visual evidence, electrical behavior, material condition, and test results together rather than relying on a single symptom.

What Are the Most Obvious Visual Signs of a Fried Circuit Board?

Severe electrical damage usually leaves physical traces.

Visual inspection is the first diagnostic step.

Common visual indicators of a fried circuit board include:

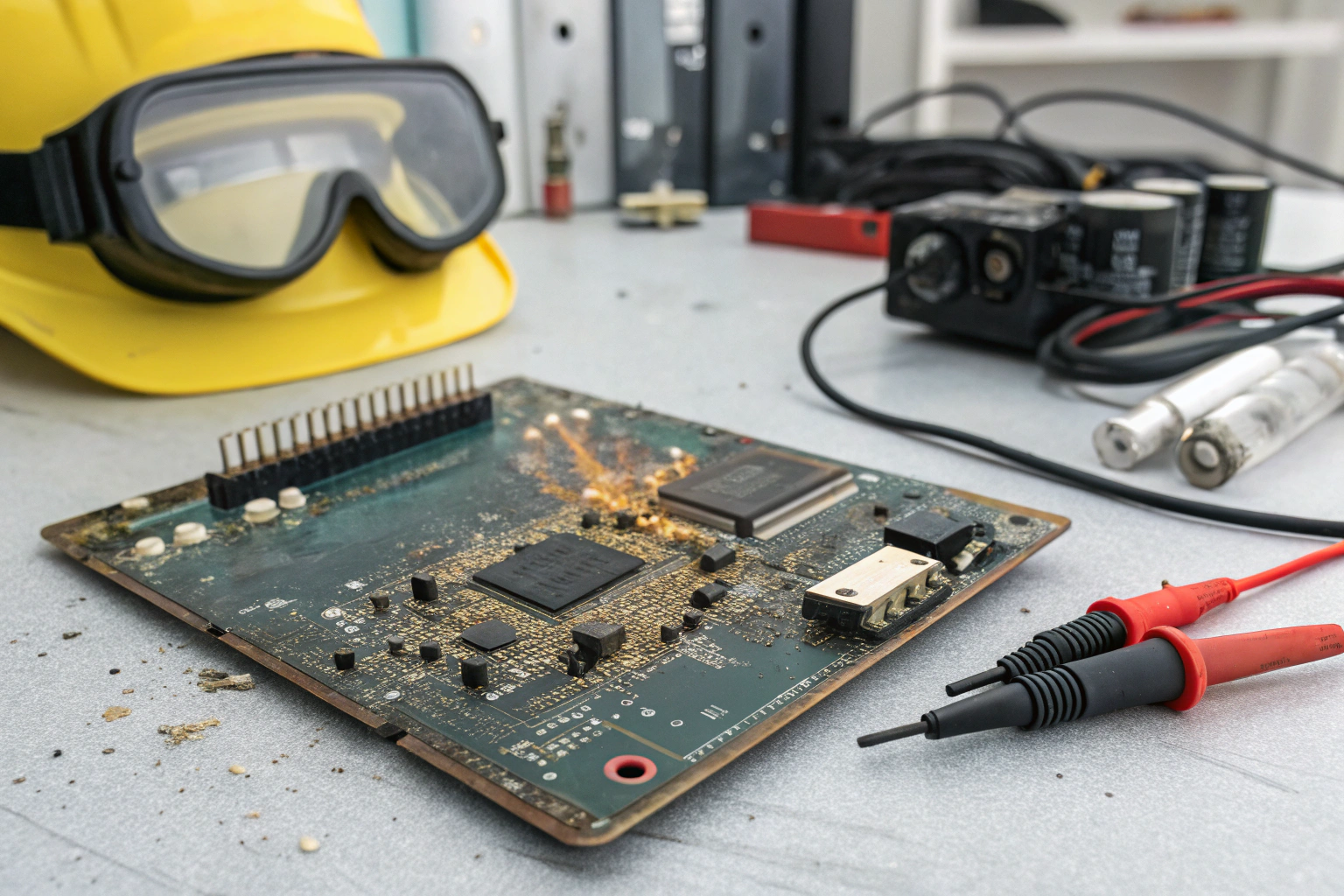

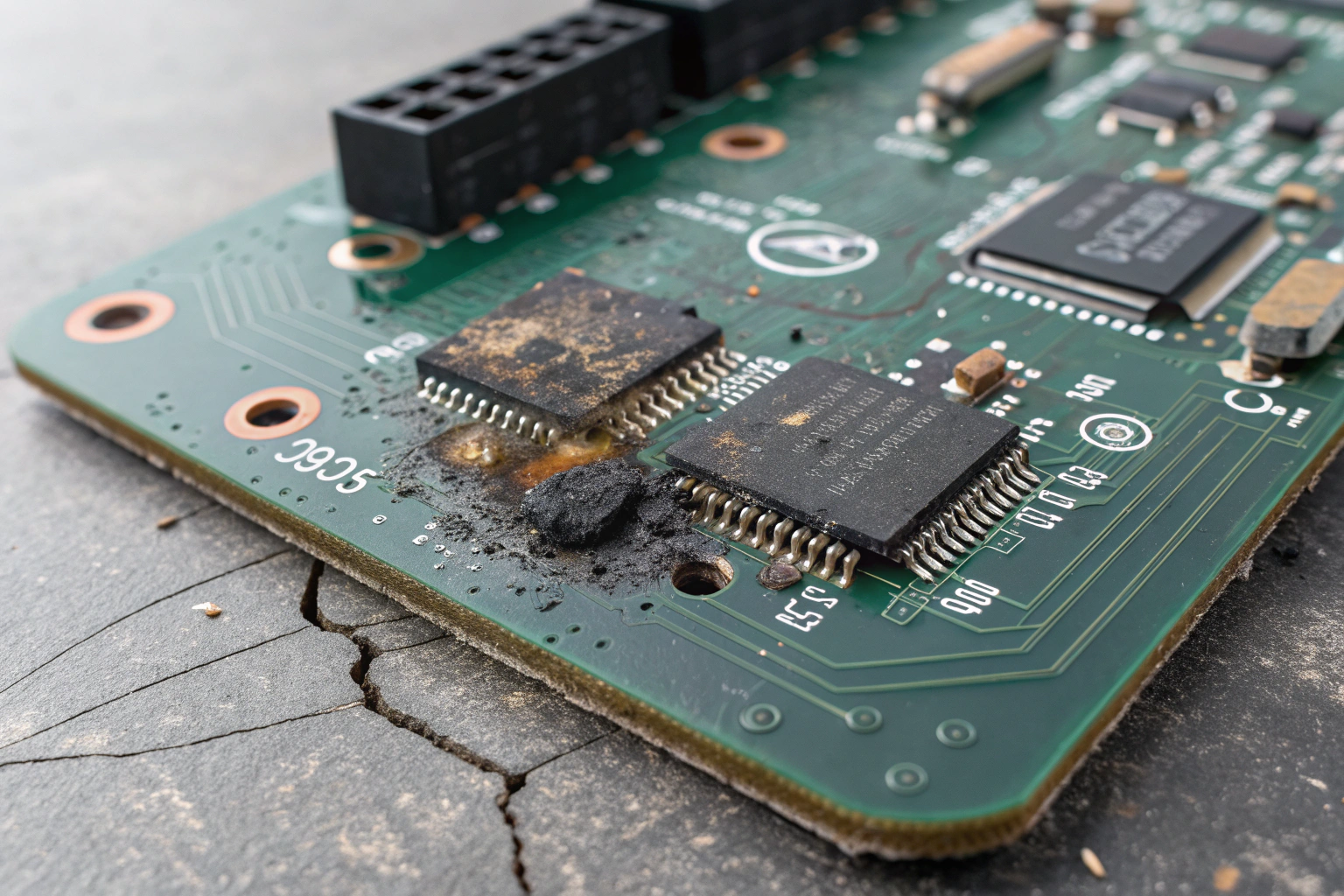

• Burn marks or blackened areas on the PCB
• Melted or cracked components
• Discolored copper traces or pads
• Blistered or bubbled laminate
• Strong burnt smell from components or board material

Dark brown or black areas often indicate localized overheating or arcing. In extreme cases, copper traces may be visibly vaporized or lifted from the board.

In factory workshops, such damage is treated as non-repairable because the PCB laminate may become carbonized. Carbonized material can conduct electricity unpredictably, creating permanent safety and reliability risks.

If the base material shows charring, the board is typically classified as scrap regardless of whether some circuits still appear intact.

How Electrical Symptoms Reveal a Fried Circuit Board?

Not all fried boards look damaged at first glance.

Electrical behavior often exposes deeper failure.

Electrical symptoms that strongly suggest a fried circuit board include:

• No power-up response at all
• Immediate tripping of power supply protection
• Extremely high current draw
• Short circuits between power and ground
• Permanent loss of specific functions

When a board causes a power supply to shut down instantly, it often indicates catastrophic failure in power regulation circuits or shorted components.

In manufacturing test stations, continuity and isolation tests are used before applying full power. A fried board frequently fails these tests outright, showing dead shorts or open circuits that cannot be corrected by re-soldering.

Repeated test failure across multiple power cycles is a strong indicator that damage is permanent.

What Does Overheating Tell About a Fried PCB?

Heat is both a cause and a symptom.

Abnormal temperature rise signals serious failure.

A fried circuit board often exhibits rapid or localized overheating when power is applied. This may occur even at low input voltage.

Typical overheating signs include:

• Components becoming too hot to touch within seconds
• Smoke or visible vapor
• Thermal hotspots detected with infrared cameras

Overheating usually points to shorted semiconductor devices, damaged power ICs, or compromised copper paths. Once these failures occur, surrounding materials are often damaged as well.

In professional workshops, thermal imaging is used to confirm whether heat patterns match normal operation. Fried boards show uncontrolled hotspots rather than smooth, distributed heat flow.

If overheating persists after component replacement, it usually means the PCB substrate or internal layers are damaged.

How Component Failure Indicates a Fried Board?

Components fail before the board, but not always alone.

Some failures take the PCB with them.

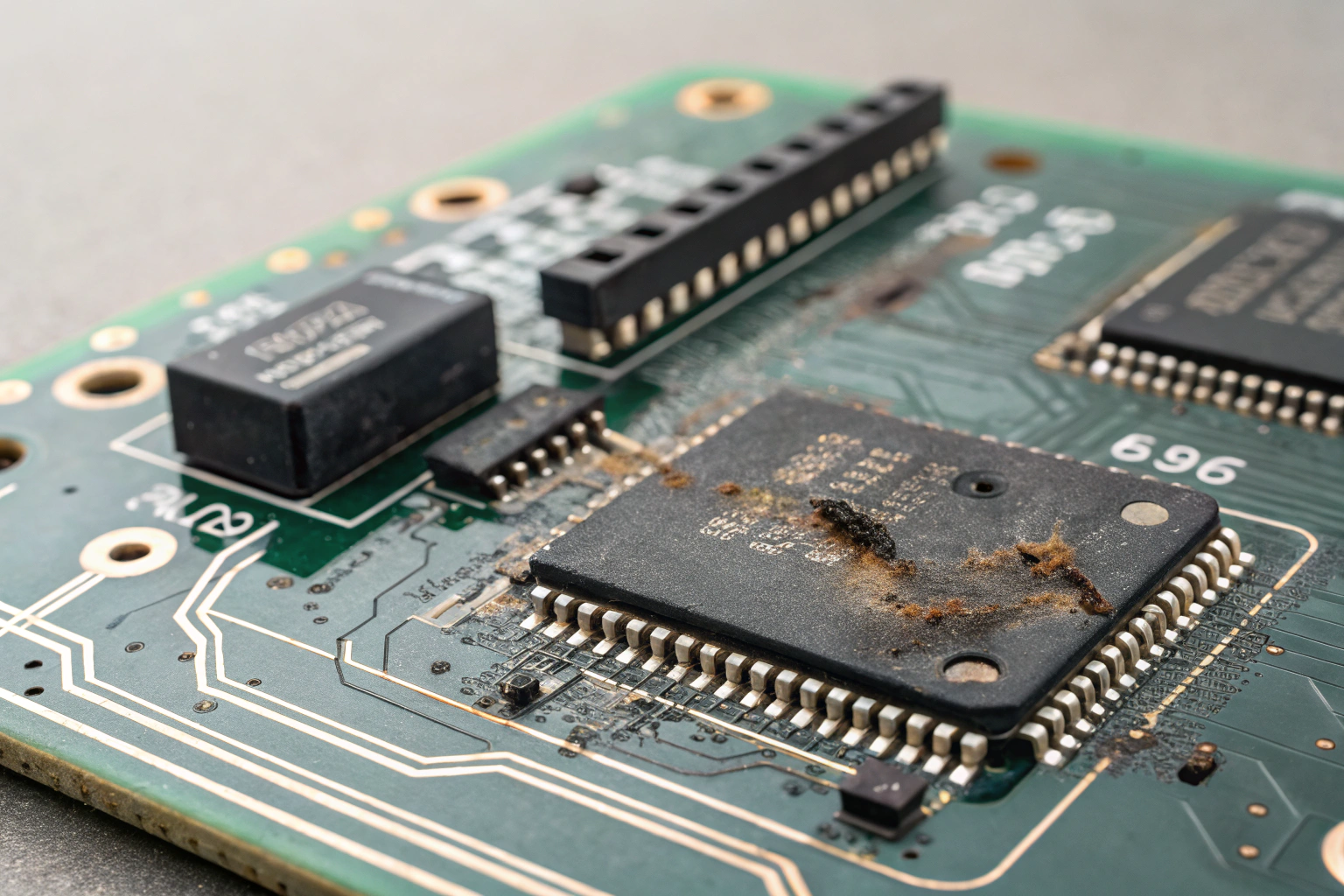

Exploded capacitors, cracked ICs, or burned resistors are strong indicators of electrical overstress. While a single failed component can sometimes be replaced, widespread component damage usually means the board is fried.

Signs of component-related board failure include:

• Multiple failed parts in one area
• Damage spreading along power traces
• Repeated failure after component replacement

In manufacturing analysis, this pattern often traces back to overvoltage events, incorrect power input, or surge damage. When copper traces and vias are overheated, their structure changes permanently.

At this stage, replacing individual components does not restore reliability. The board may function briefly but will fail again under normal load.

How Factory Testing Confirms a Circuit Board Is Fried?

Testing turns suspicion into certainty.

Data replaces guesswork.

In factory environments, a circuit board is confirmed as fried through structured testing:

• Continuity and insulation resistance tests
• Controlled power-up with current monitoring
• Functional testing under load
• Thermal and stress observation

A fried PCB typically fails at the earliest stages. Shorts, unstable voltage rails, or immediate shutdowns prevent progression to functional testing.

If a board fails repeatedly even after controlled rework, it is classified as non-recoverable. Manufacturing rules usually limit the number of rework attempts to avoid excessive thermal damage.

This decision protects production stability and prevents unreliable products from moving forward.

Why Fried PCBs Are Usually Not Worth Repairing?

Electrical damage often extends beyond visible areas.

Repair cannot reverse material breakdown.

Once a PCB is fried, several irreversible changes may have occurred:

• Carbonization of laminate
• Loss of copper adhesion
• Internal layer shorts
• Degraded insulation resistance

Even if functionality appears restored temporarily, long-term reliability cannot be guaranteed. In manufacturing, such boards are scrapped to avoid hidden field failures.

Replacement restores the original design intent. Repair only masks damage that will resurface later.

This is why factories focus on root cause prevention rather than aggressive repair of severely damaged boards.

Conclusion

A circuit board is fried when electrical or thermal damage permanently compromises its materials, components, and insulation. Clear signs include burn marks, melted components, strong odors, abnormal current draw, overheating, and repeated test failure. In many cases, damage extends into internal layers or the PCB substrate itself, making reliable repair impossible. In professional manufacturing, fried circuit boards are identified through visual inspection, electrical testing, and thermal analysis, then removed from production to protect overall quality. Replacing a fried PCB is not just a cost decision but a reliability safeguard. Recognizing these signs early prevents wasted repair effort, repeated failures, and long-term risk, ensuring that only stable and dependable assemblies continue through the manufacturing and delivery process.
