PCB thickness is a key mechanical and electrical parameter in multilayer board manufacturing. For 4-layer PCBs, thickness directly affects signal integrity, impedance control, mechanical strength, assembly stability, and compatibility with connectors and enclosures. Although many projects refer to a “standard” thickness, the actual value is determined by stack-up design and manufacturing requirements.

A 4-layer PCB is most commonly manufactured at 1.6 mm thickness, but practical options typically range from 0.8 mm to 2.0 mm depending on application, materials, and process constraints.
Thickness is defined by the laminated structure, not by layer count alone.

The sections below explain how 4-layer PCB thickness is defined, controlled, and verified from a manufacturing and factory workshop perspective.

What Is the Standard Thickness of a 4-Layer PCB?

1.6 mm is the industry baseline.

In most electronic products, the default thickness for a 4-layer PCB is 1.6 mm (approximately 63 mil). This thickness has become the industry standard because it offers a stable balance between mechanical rigidity, electrical performance, and manufacturing efficiency.

From a factory standpoint, 1.6 mm boards fall within a mature and well-controlled process window. Core materials, prepregs, drilling parameters, lamination recipes, and inspection standards are all optimized for this thickness. As a result, yield is high and production risk is low.

Unless there are strong mechanical or space constraints, 1.6 mm is typically recommended during early design stages.

Can a 4-Layer PCB Be Thinner Than 1.6 mm?

Thinner designs are common for compact products.

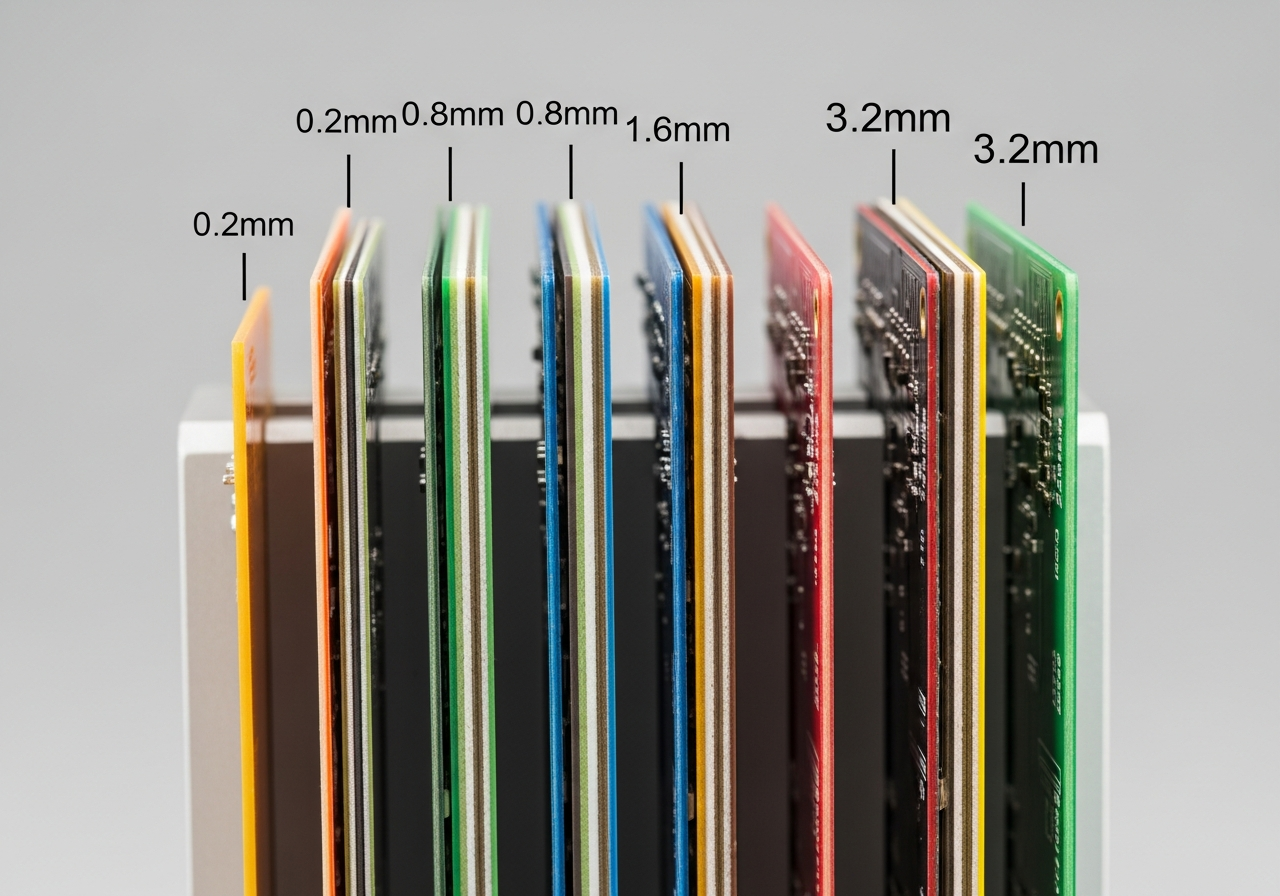

A 4-layer PCB can be produced at 1.2 mm, 1.0 mm, or even 0.8 mm by reducing core thickness and prepreg layers in the stack-up.

Thinner boards are often used in space-limited designs, compact control modules, or lightweight products. However, reducing thickness introduces manufacturing considerations:

• Higher risk of board warpage during reflow soldering
• Increased sensitivity to copper imbalance
• Stricter handling and panel support requirements

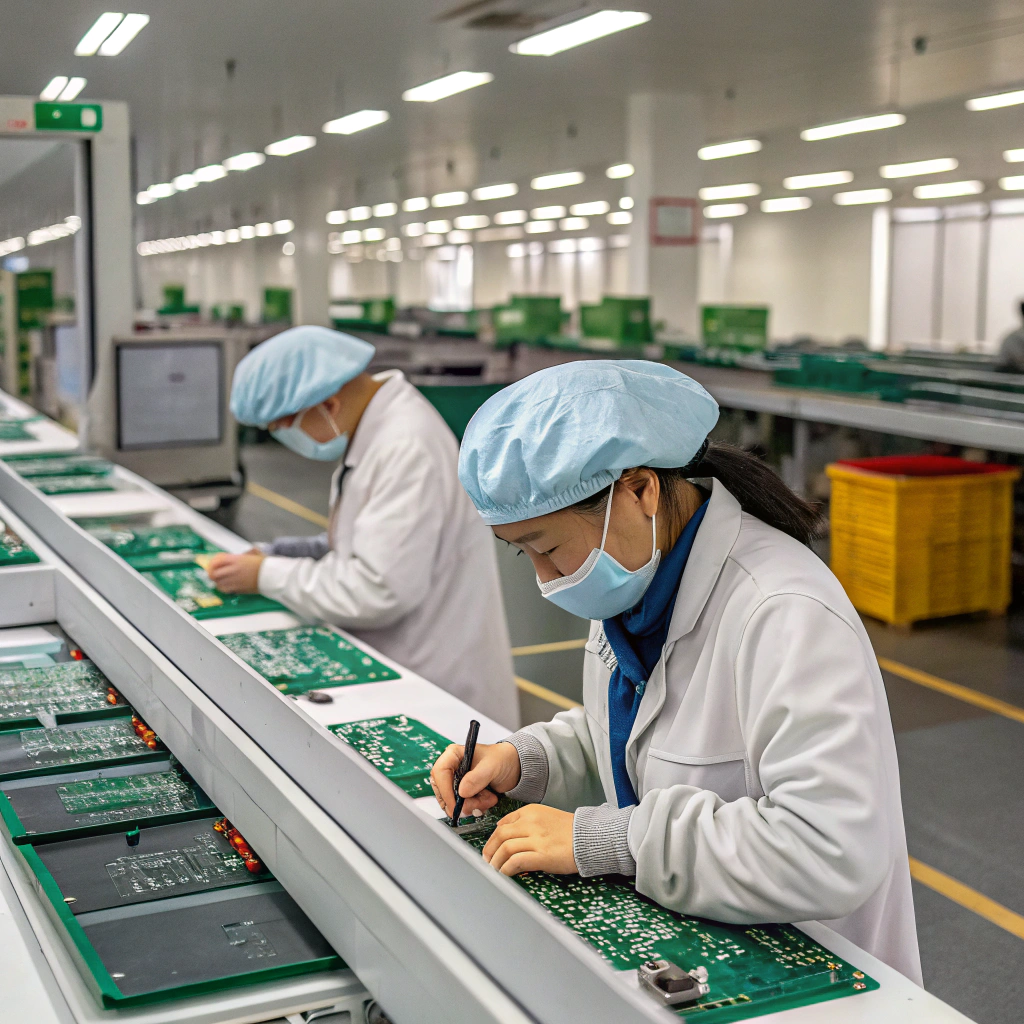

In factory workshops, thin 4-layer PCBs often require carrier panels, additional support pins in reflow ovens, and tighter lamination control to maintain flatness and assembly yield.

Can a 4-Layer PCB Be Thicker Than 1.6 mm?

Thicker boards are used for strength and durability.

4-layer PCBs are also manufactured at 2.0 mm or greater when additional mechanical rigidity is required.

Thicker designs are common in:

• Industrial control equipment
• Power electronics
• Applications with heavy connectors or mechanical stress

From a manufacturing perspective, thicker boards affect drilling aspect ratio, heat transfer during reflow, and overall material cost. These factors are evaluated during engineering review to ensure plating quality and assembly stability.

How Does Stack-Up Design Define 4-Layer PCB Thickness?

Thickness comes from materials, not layer count.

A typical 4-layer PCB stack-up includes:

• Top copper layer
• Prepreg
• Inner layer 1
• Core
• Inner layer 2
• Prepreg
• Bottom copper layer

By adjusting core thickness, prepreg type, and copper weight, the same 4-layer PCB can be produced at different overall thicknesses. Copper thickness, especially on outer layers with plating, also contributes to the final dimension.

In manufacturing, stack-up tables specify the pressed thickness, not the raw material thickness. This accounts for resin flow and compression during lamination, ensuring accurate final results.

How Does 4-Layer PCB Thickness Affect Assembly and Testing?

Thickness directly impacts production behavior.

During SMT assembly, PCB thickness influences:

• Board rigidity during placement
• Thermal behavior during reflow
• Coplanarity for fine-pitch components

Thin boards are more prone to bending, which can cause solder defects. Thick boards require longer heating time to reach reflow temperature. Testing fixtures are also designed around expected thickness to ensure correct probe pressure and contact depth.

Maintaining consistent thickness simplifies assembly setup and improves test repeatability across production batches.

How Is 4-Layer PCB Thickness Controlled in the Factory?

Thickness control is part of quality management.

In PCB fabrication workshops, thickness is controlled and verified through:

• Incoming inspection of core and prepreg materials
• Controlled lamination temperature and pressure
• Process records for copper plating
• Final thickness measurement using calibrated tools

First article inspection and final outgoing inspection confirm that finished boards meet the specified thickness tolerance, typically ±10% unless otherwise defined.

Stable thickness control ensures compatibility with connectors, enclosures, and downstream assembly processes.

Conclusion

A 4-layer PCB does not have a single fixed thickness, but 1.6 mm remains the most common and reliable standard due to its balance of strength, electrical stability, and manufacturing efficiency. Depending on application needs, thickness can be reduced to as low as 0.8 mm or increased beyond 2.0 mm through controlled stack-up design.

From a manufacturing perspective, thickness selection affects lamination behavior, assembly stability, testing accuracy, and long-term reliability. By defining thickness early through a proper stack-up and aligning it with factory process capability, 4-layer PCBs can be produced with consistent quality, stable yield, and predictable performance across both small-batch and volume production.
