Finding ground on a circuit board means identifying the common electrical reference point used by all circuits. Ground is essential for voltage stability, signal reference, safety, and correct operation. On a PCB, ground is usually easy to locate once layout logic, component behavior, and manufacturing conventions are understood.

In electronics manufacturing and troubleshooting, ground identification is a basic but critical skill. Incorrect ground assumptions lead to wrong measurements, misdiagnosis, and even secondary damage during testing.

Ground is not always marked clearly, but it always follows certain physical and electrical rules.

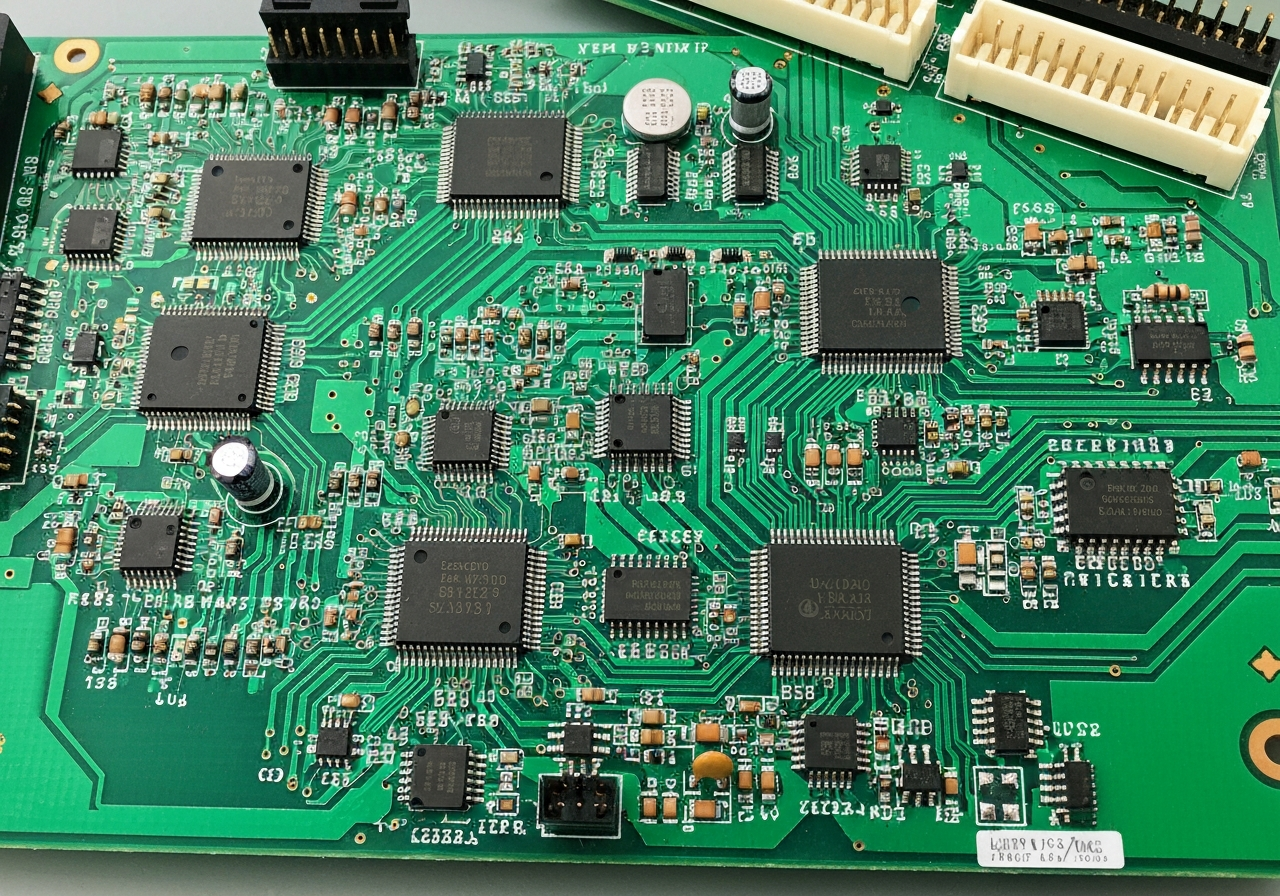

Identify Ground by Visual PCB Layout Features

PCB layout gives the first and fastest clues.

Ground is usually the most dominant network.

On most circuit boards, ground appears as:

• Large copper areas or planes
• Wide traces connected to many components
• Filled copper regions under ICs
• Multiple vias stitching layers together

Ground planes are often placed on inner layers or the bottom layer to provide low impedance and noise reduction. These copper areas look larger and more continuous than signal traces.

In professional PCB design, ground is intentionally made wide and solid to improve EMC performance and thermal stability. Therefore, the largest copper network on the board is very often ground.

Use Component Reference Points to Locate Ground

Components always connect to ground in predictable ways.

Their pin behavior reveals the ground net.

Ground is commonly connected to:

• Negative terminal of electrolytic capacitors
• One side of ceramic decoupling capacitors
• Metal shielding cans
• Crystal oscillator ground pads
• IC ground pins (GND, VSS, PGND)

Electrolytic capacitors are especially useful. Their negative lead almost always connects to ground. Tracing from this point often reveals the main ground network.

In manufacturing analysis, component pin functions are cross-checked with datasheets to confirm ground connections before any probing or rework.

Find Ground Using a Multimeter Continuity Test

Electrical testing confirms visual assumptions.

Continuity testing is the safest method.

With the board powered off:

• Set the multimeter to continuity mode
• Place one probe on a known ground reference
• Probe other suspected ground points

If continuity is detected, those points belong to the same ground net.

Common reference points include:

• Power connector ground pin
• USB or communication connector shield
• Metal mounting holes connected to copper

In factory workshops, this method is standard during inspection and troubleshooting. It avoids powering the board and prevents accidental damage.

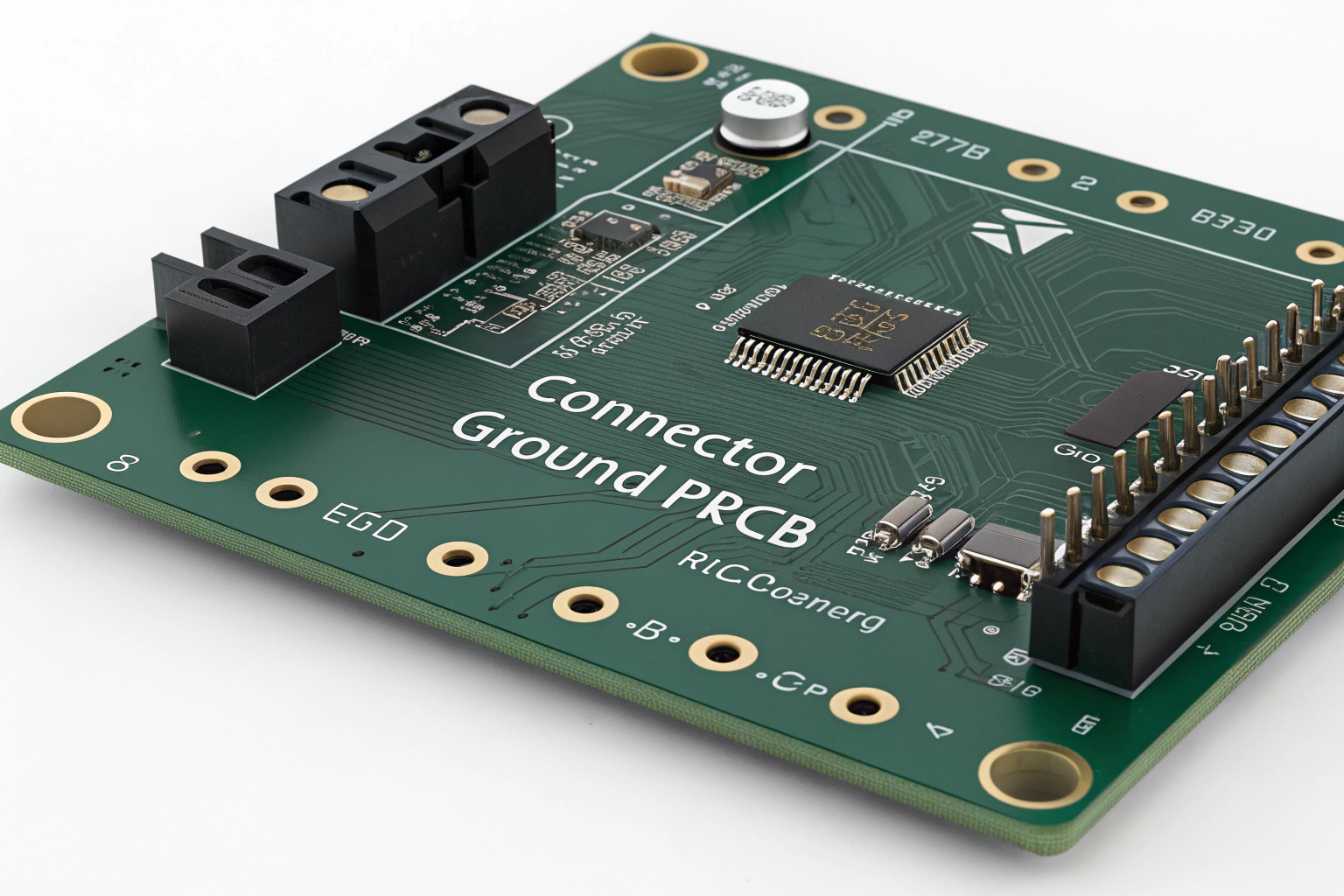

Use Connectors and Shields to Identify Ground

External interfaces follow strict grounding rules.

They provide reliable ground references.

On most PCBs:

• USB, HDMI, Ethernet shields connect to ground
• DC power jack outer barrel is ground
• Metal connector housings are grounded
• Chassis mounting holes often tie to ground

These points are designed for safety and EMI control, making them dependable ground references.

In industrial manufacturing, grounding through connectors is also verified during safety and EMC testing, reinforcing their reliability as ground indicators.

Recognize Ground Symbols and Silkscreen Markings

Some boards provide direct visual labels.

They simplify identification.

Ground may be marked by:

• GND text
• ⏚ ground symbol
• VSS or PGND labels
• Test points labeled GND

High-grade circuit boards often include dedicated ground test pads to support inspection and debugging. These pads are intentionally exposed and easy to access.

In production environments, labeled ground points reduce test errors and speed up functional verification.

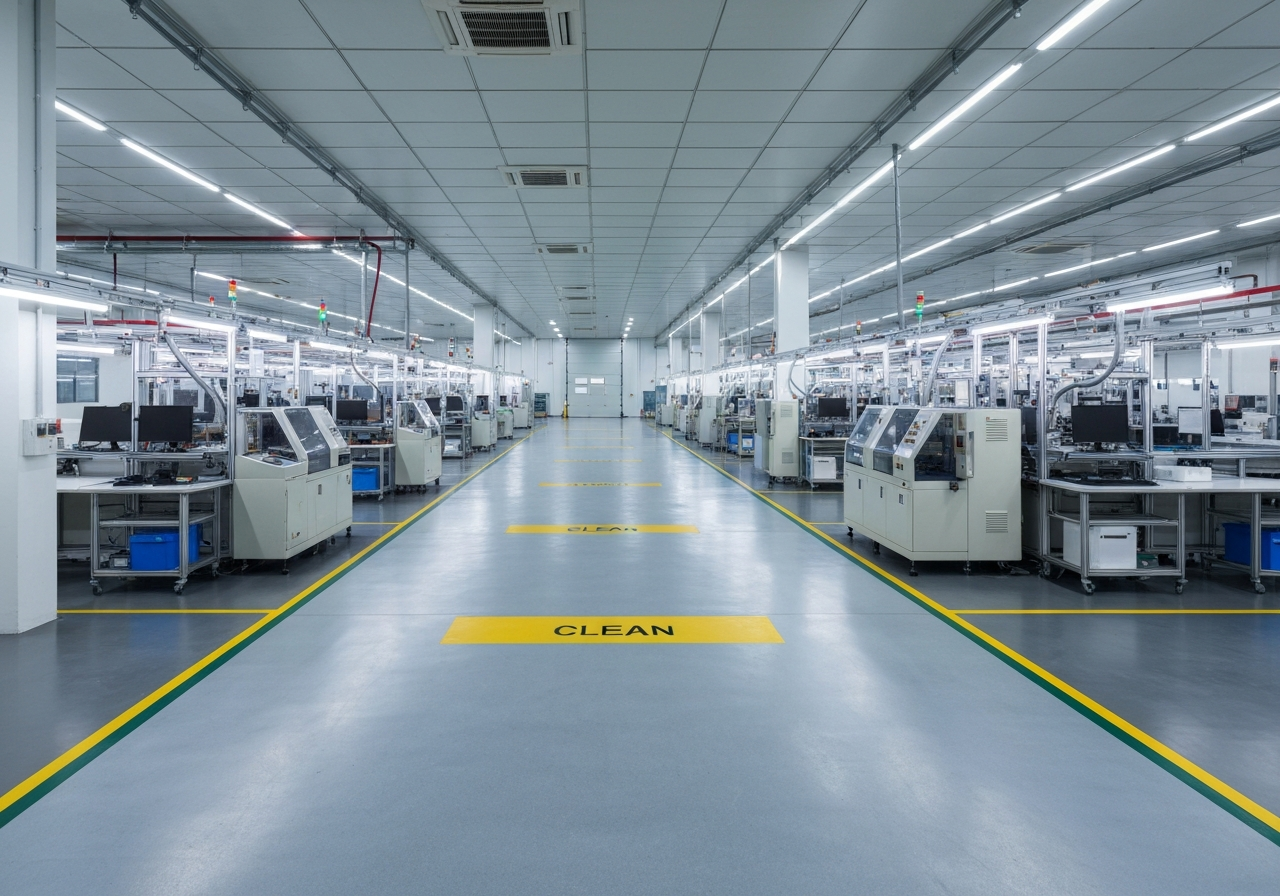

Understand How Ground Is Designed in Factory PCBs

Ground is not random.

It follows manufacturing and reliability logic.

In professional PCB manufacturing:

• Ground planes are continuous and unbroken
• Multiple vias connect ground layers
• Sensitive signals reference solid ground
• Power and ground return paths are controlled

This design approach reduces noise, improves soldering stability, and enhances long-term reliability.

During assembly, ground networks also help with:

• Heat spreading during reflow
• ESD protection
• Stable electrical testing

Understanding how factories design ground makes identification faster and more accurate during troubleshooting.

Common Mistakes When Finding Ground on a PCB

Errors usually come from assumptions.

Discipline prevents damage.

Frequent mistakes include:

• Assuming any large copper area is ground
• Confusing negative voltage rails with ground
• Probing powered boards incorrectly
• Ignoring multilayer internal ground planes

In manufacturing diagnostics, every ground assumption is verified electrically before further testing. This avoids incorrect measurements and secondary faults.

Conclusion

Finding ground on a circuit board requires combining visual inspection, component behavior, multimeter continuity testing, and knowledge of standard PCB design practices. Ground is typically the largest and most connected copper network, tied to capacitor negatives, connector shields, and mounting points. In professional manufacturing, ground is intentionally designed for stability, safety, and testability, making it consistent and traceable across boards. Correctly identifying ground is essential for accurate measurement, safe troubleshooting, and reliable repair. When approached systematically, ground identification becomes a straightforward and repeatable process rather than guesswork.
