PCB size is a critical mechanical parameter in electronic manufacturing. It directly affects enclosure compatibility, panelization efficiency, SMT assembly stability, test fixture design, and final product reliability. Incorrect size definition or measurement often leads to assembly issues, rework, or mechanical interference during integration.

PCB size is measured based on the finished board outline, including overall length, width, and shape, using design data and physical measurement tools as reference.
Only the final usable board area is considered, excluding temporary rails or process frames.

The following sections explain how PCB size is defined, measured, and verified in real manufacturing environments.

What Does PCB Size Actually Refer To?

PCB size refers to the finished outline.

PCB size is defined as the maximum external dimensions of the final board after routing or depaneling. This includes:

• Overall length (X direction)
• Overall width (Y direction)
• Board outline shape (rectangular or irregular)

PCB size does not include:

• Panel rails
• Breakaway tabs
• Tooling strips
• Temporary carrier frames used in SMT

In fabrication and assembly documentation, PCB size is always referenced to the board outline layer or mechanical layer in the design files.

How Is PCB Size Defined in Design Data?

Design files are the primary reference.

PCB size is formally defined in CAD outputs such as:

• Gerber outline layer
• Mechanical drawing
• DXF or fabrication drawings

The outline layer specifies the exact contour used by CNC routing or V-cut machines. Dimensions shown on fabrication drawings represent the target finished size, usually with a defined tolerance.

In manufacturing, this data is used for panelization planning, routing path generation, and depaneling process setup. Any ambiguity in outline definition can cause downstream production delays or mechanical mismatch.

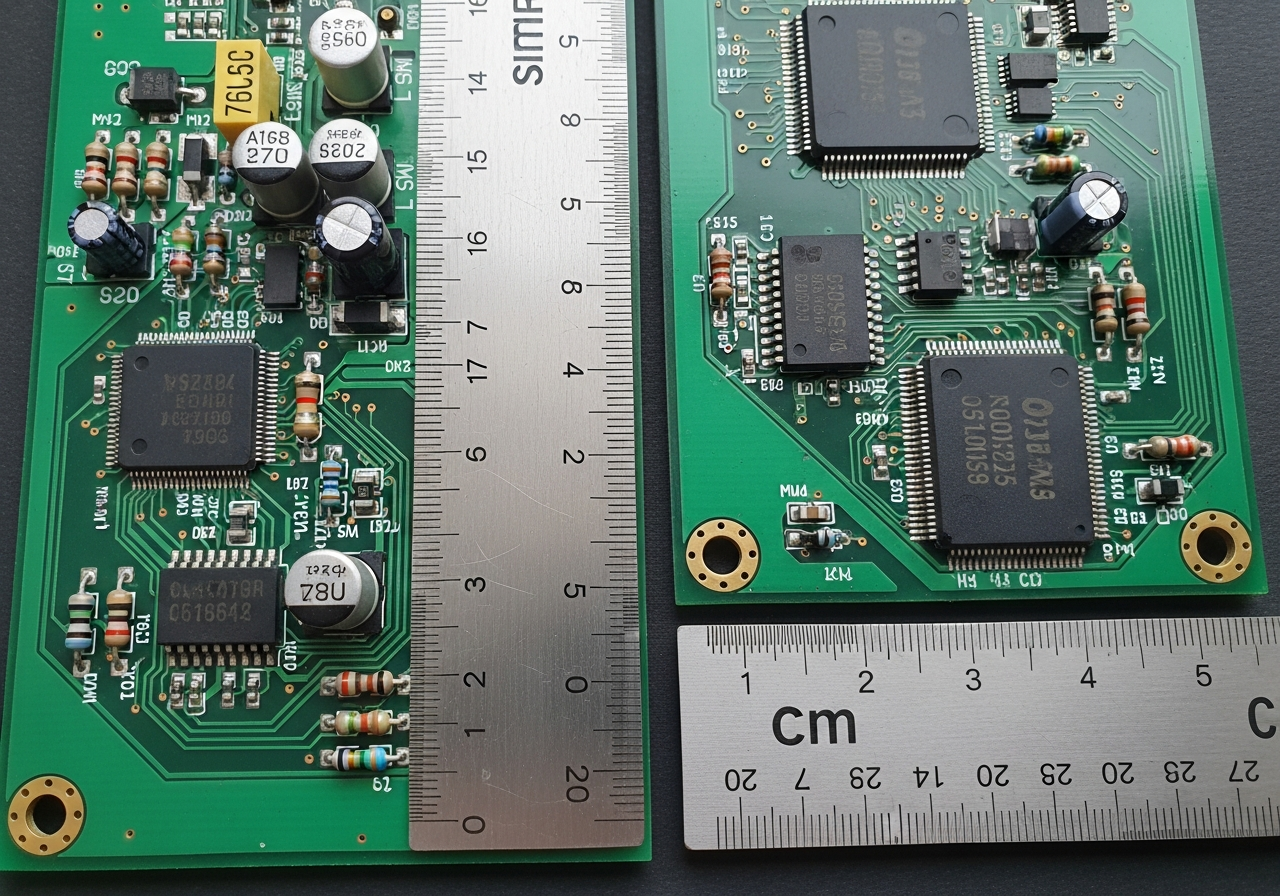

How to Measure PCB Size Using Physical Tools?

Physical measurement confirms finished dimensions.

After fabrication or assembly, PCB size is measured using tools such as:

• Digital calipers
• Micrometers (for thickness reference)
• Optical measurement systems for high precision

Standard practice includes:

• Measuring the longest edge-to-edge distance
• Measuring width at the widest point
• Taking multiple measurements to account for chamfers or radius corners

In factory workshops, digital calipers with ±0.02 mm accuracy are commonly used during first article inspection and final outgoing quality checks.

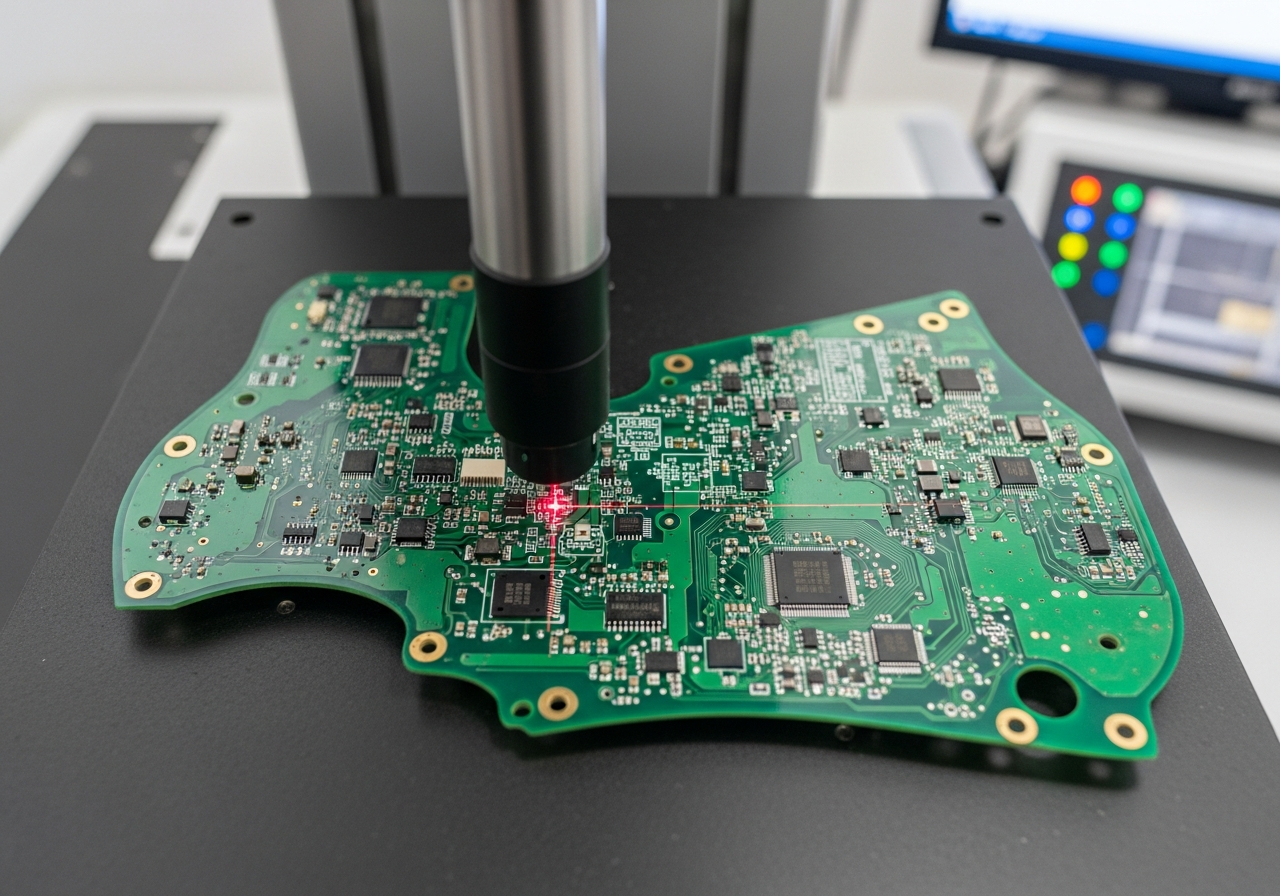

How to Measure PCB Size for Irregular Shapes?

Irregular boards require reference-based measurement.

For PCBs with cutouts, slots, curves, or non-rectangular outlines, size is measured using:

• Maximum X and Y boundary dimensions
• Distance between defined datum points
• Critical mechanical features such as connector edges or mounting holes

Manufacturing drawings often include multiple dimension callouts to ensure correct enclosure fit. Irregular shapes increase routing complexity and inspection effort, making accurate size definition especially important.

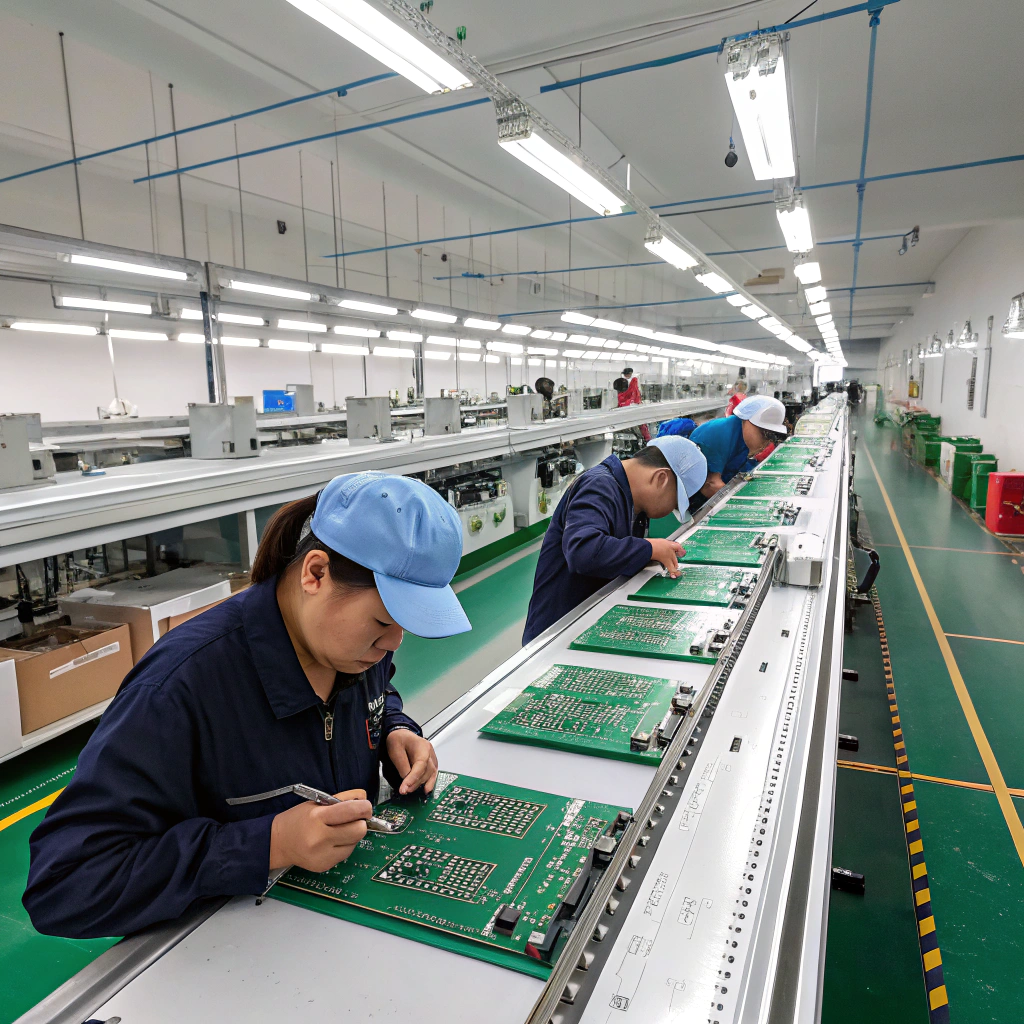

How Does PCB Size Affect Factory Processes?

Size directly impacts production efficiency.

PCB size influences:

• Panel utilization and material yield
• SMT conveyor width and support configuration
• Reflow oven thermal balance
• Test fixture layout and probe access

Very small PCBs may require carrier panels or tooling frames to maintain stability during assembly. Large PCBs may need additional support pins to prevent sagging during reflow soldering.

From a workshop perspective, accurate size data allows proper fixture design, reduces handling risk, and improves assembly consistency.

How Is PCB Size Verified During Production?

Verification is part of standard quality control.

PCB size is checked during:

• First article inspection
• In-process quality checks
• Final outgoing inspection

Factories define acceptable size tolerances, typically ±0.1 mm to ±0.2 mm depending on board complexity and application. Measurement records are linked to inspection reports to ensure traceability across production batches.

Consistent size verification helps prevent enclosure mismatch, connector misalignment, and assembly fixture issues.

Conclusion

Measuring PCB size is not limited to checking length and width with a ruler. It is a controlled process that starts with clear outline definition in design files and continues through physical measurement and factory inspection. Accurate PCB size measurement ensures compatibility with enclosures, stable SMT assembly, efficient panelization, and reliable testing.

From a manufacturing standpoint, correct size control reduces rework, improves yield, and supports consistent production quality. Treating PCB size as a critical mechanical parameter—rather than an afterthought—helps ensure smooth integration from fabrication through final product assembly and long-term use.
