PCBA laminate types play a critical role in determining the performance, reliability, and durability of a circuit board. From thermal resistance to signal integrity, the right laminate can make all the difference—so which type fits your application best?
PCBA laminates are insulating base materials that provide mechanical support and electrical insulation in printed circuit boards. Common types include FR-4, polyimide, and metal-core laminates.
I’ve worked with a wide range of PCB projects, and nothing has a more lasting impact on board performance than the laminate type. The wrong choice can result in delamination, signal loss, or even total board failure. The right one? That’s the backbone of a reliable, high-performance device. In this guide, I’ll walk you through the major laminate types for PCBA, when to use them, and what mistakes to avoid.
What Are PCBA Laminates and Why Do They Matter?
PCBA laminates are the foundation materials that support and insulate copper traces in a PCB, impacting everything from heat tolerance to high-frequency signal integrity.
When I first started working with electronics, I assumed the PCB base didn’t matter much—as long as the copper routed correctly, things should work. But I quickly learned otherwise. A customer project involving high-current LEDs failed thermal tests. Turns out, our go-to FR-4 couldn’t handle the heat, and we had to redesign using a metal-core board.
The laminate forms the structural base of a PCB, and every copper layer is laminated onto this foundation. A poor laminate choice may cause:
- Warping under heat
- Signal distortion at high frequencies
- Cracked solder joints
- Increased EMI or crosstalk
Top manufacturers like PCBWay and JLCPCB offer an extensive selection of laminates, each engineered for specific use cases.
The dielectric constant (Dk), thermal conductivity, and mechanical stability of laminates all influence the board’s overall performance. That’s why laminate selection should happen during the earliest design stages—not just at production.

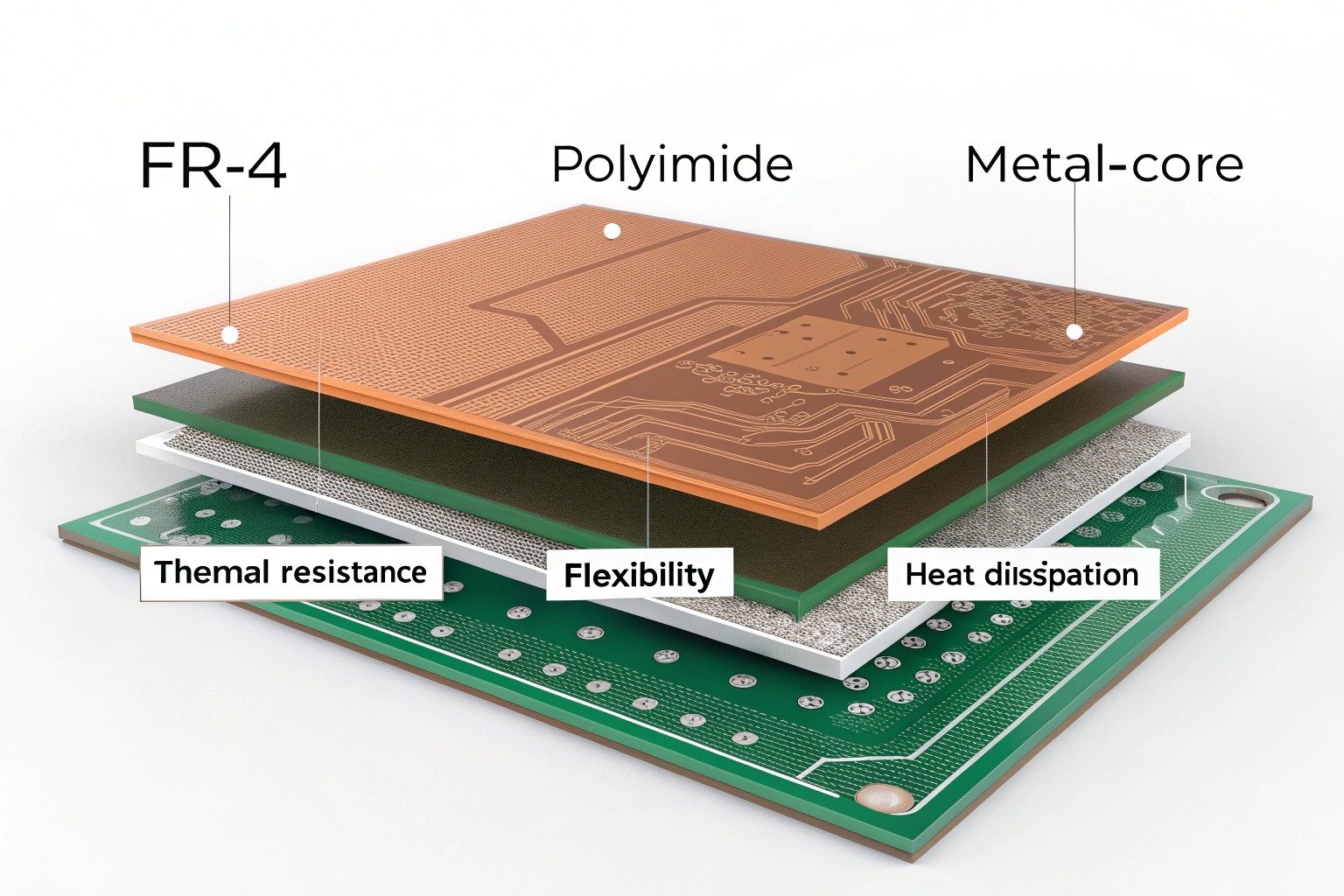

Types of PCBA Laminates and Their Characteristics
The most commonly used PCBA laminate types are FR-4, polyimide, and metal-core materials, each offering unique trade-offs in thermal resistance, mechanical stability, and cost.
When I’m designing a board, my laminate choice typically boils down to these three materials:
FR-4: The Industry Standard
FR-4 is a glass-reinforced epoxy laminate that’s cheap, durable, and familiar to every PCB house. It’s perfect for general-purpose electronics, like IoT gadgets, consumer devices, and low-speed signal processing. But don’t let its popularity fool you—FR-4 struggles in high-frequency or high-temperature environments.
- Thermal limit: Around 130–140°C continuous
- Dielectric constant: 4.2–4.8 (not ideal for RF)
- Good for: Everyday gadgets, prototypes, hobby boards
While it’s an economical choice, I’ve seen FR-4 fail in RF circuits and automotive designs. It’s fine for most things—but know its limits.
Polyimide: Built for Extreme Conditions
For boards that face high heat, harsh chemicals, or need to flex, polyimide is a no-brainer. This material is known for its thermal stability (over 250°C) and mechanical flexibility, which makes it indispensable in:
- Aerospace systems
- Automotive engine bays
- Flexible PCBs or flex-rigid boards
That said, polyimide is pricier and more complex to process. I remember a flex PCB project where the quote doubled just because of the material—but the reliability we gained was worth every cent.

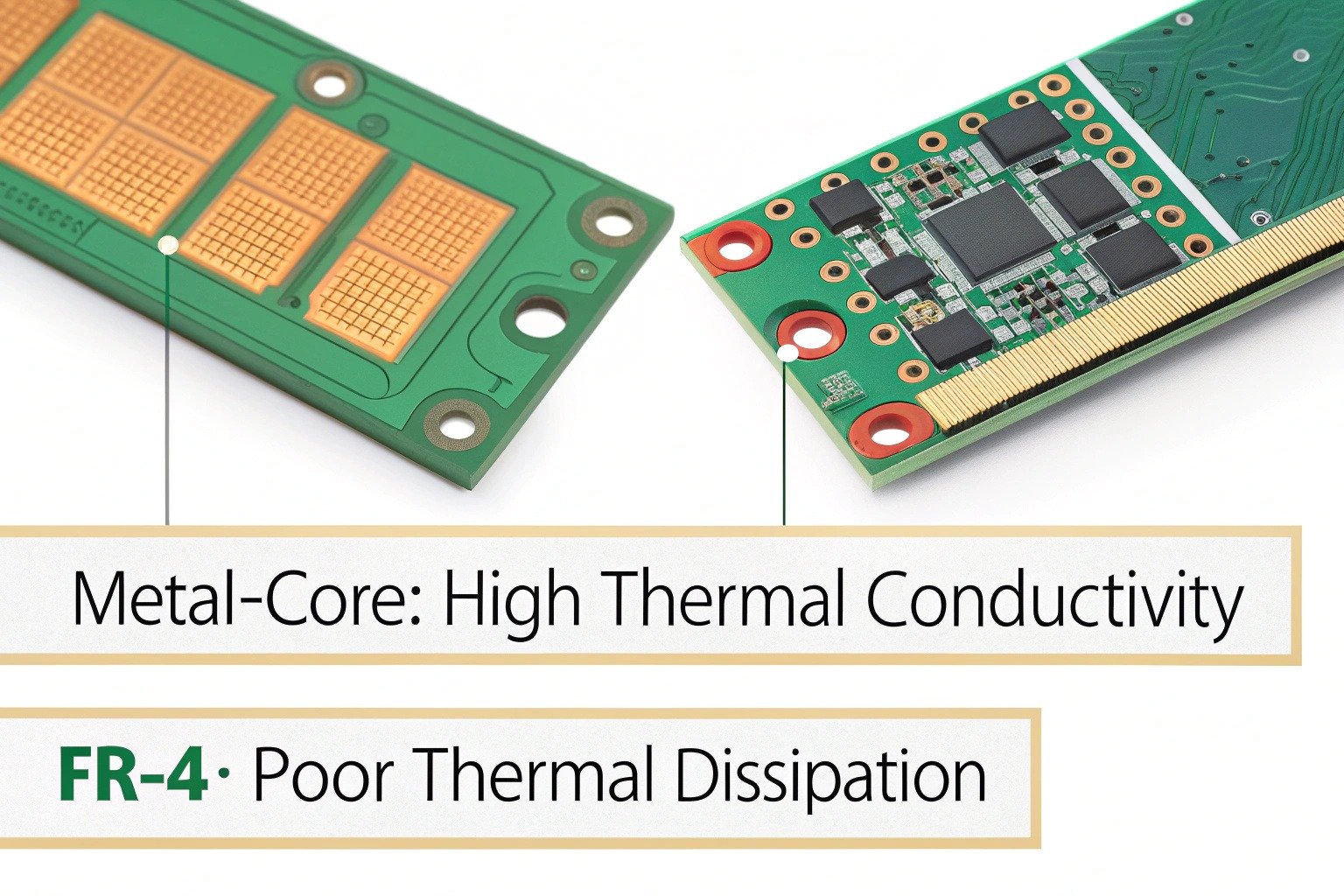

Metal-Core Laminates (MCPCB): The Thermal Champs
When heat management is critical, metal-core laminates step in. These boards use aluminum or copper bases that spread heat much better than resin or fiberglass.
Perfect for:
- LED drivers
- Power amplifiers
- Industrial controls
The only trade-offs? They’re heavier and harder to drill. I used one in a fanless LED lighting project, and we avoided active cooling completely thanks to the aluminum core.
For more on this topic, check out Bittele Electronics’ guide to MCPCBs, which includes technical stackups and sample designs.

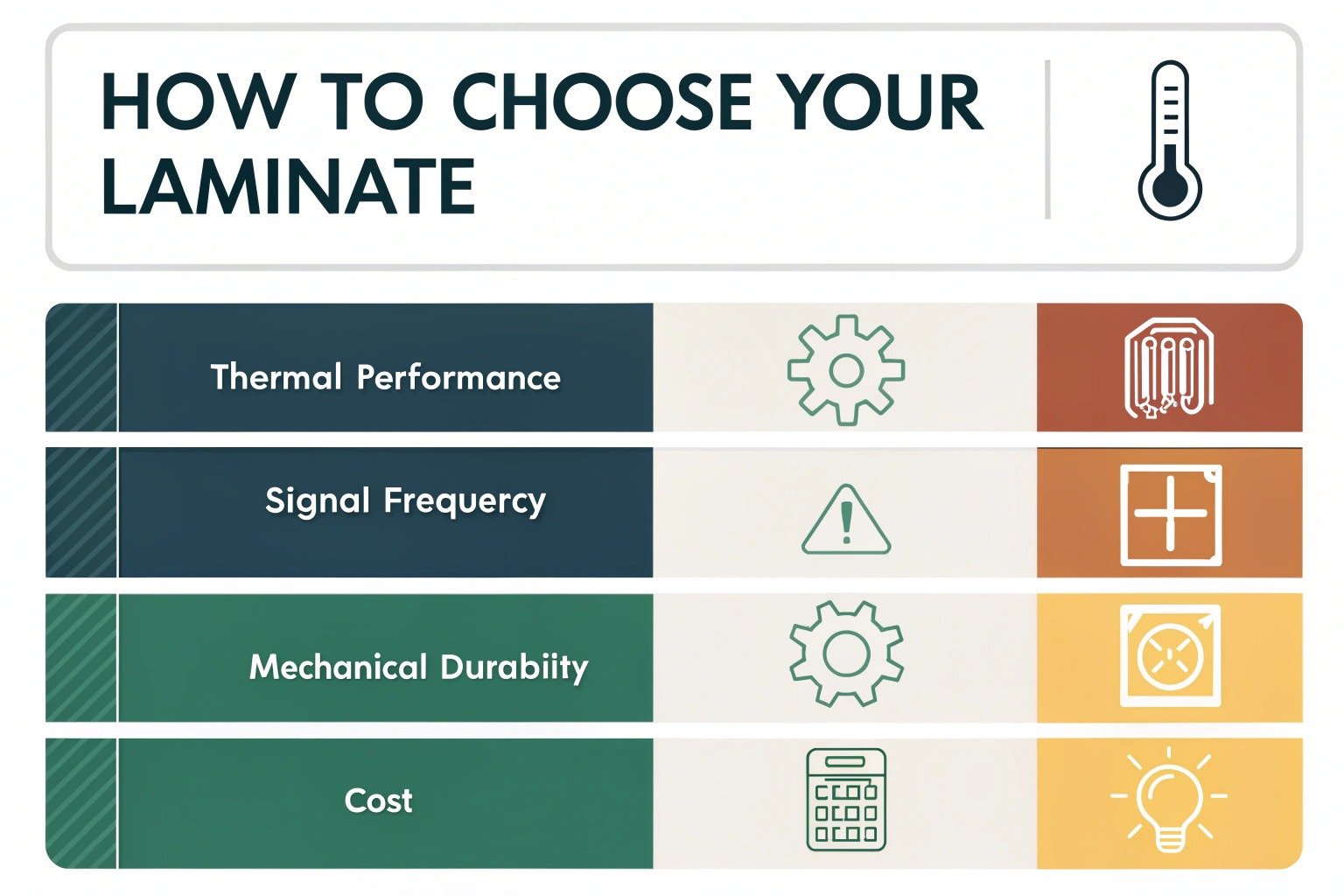

How to Select the Right Laminate for Your Application
You should choose your laminate based on the circuit’s thermal needs, signal frequency, mechanical stress, and overall budget.
Every application is different. Here’s how I decide:
Consider the Environment First
If the board will face extreme heat, polyimide or metal-core laminates are essential. FR-4 will warp or degrade quickly in those conditions.
Match to Electrical Performance
For RF designs, FR-4 introduces signal loss. Laminates with low dissipation factor and stable dielectric constants—like Rogers or Isola materials—are better suited.
Budget and Availability
FR-4 wins for cost. But don’t sacrifice performance just to save a few dollars. A $10 upgrade in material could save $1,000 in field returns.
Fabricator Capabilities
Don’t assume your PCB vendor can work with exotic laminates. I always check their material list in advance. See PCBWay’s supported materials here.
Pro tip: Always get a stackup recommendation from your fabricator if you’re using non-standard materials. They’ll help ensure impedance control and manufacturability are aligned.
Conclusion
Choosing the right laminate isn’t just about ticking a box on a spec sheet—it’s a design decision that ripples across performance, cost, and reliability.
If your board runs cool and simple, FR-4 is probably fine. But if you’re dealing with high power, bending, or RF signals, it’s worth exploring polyimide or metal-core options. From my experience, investing in the right material up front avoids massive headaches later.
As always, check with your PCB fabricator before locking in a laminate type. And never underestimate how much a few microns of material can impact your entire product.
