Printed Circuit Board Assembly (PCBA) is the process that brings life to an electronic circuit by mounting components onto a bare PCB. But what exactly happens during PCBA—and why is it so critical to modern electronics?

PCBA involves placing, soldering, and inspecting electronic components onto a printed circuit board to make it fully functional. The process requires precision, automation, and quality control at every step.

Almost every electronic device around us—from mobile phones and computers to industrial machines and medical devices—relies on a PCBA to operate. While a bare printed circuit board (PCB) is just a platform of copper traces and insulating layers, it becomes a functional unit only after it goes through the PCBA process. But what actually goes on in this transformation?

In this article, I’ll guide you through the entire PCBA process, explain the core technologies involved, and show why each step matters in creating a reliable, working product.

What Is PCBA?

PCBA stands for Printed Circuit Board Assembly, which refers to the process of soldering or assembling electronic components onto a blank PCB. Once the components are in place, the board becomes functional—it can process signals, manage power, and interact with other systems.

A bare PCB has no electronic function on its own. It only provides the circuit path through copper traces. When capacitors, resistors, microchips, and other components are placed and soldered onto it, it becomes a PCBA. This transformation is the foundation of all modern electronics.

Key Steps in the PCBA Process

Although there are variations depending on complexity and industry, the general steps in PCBA include:

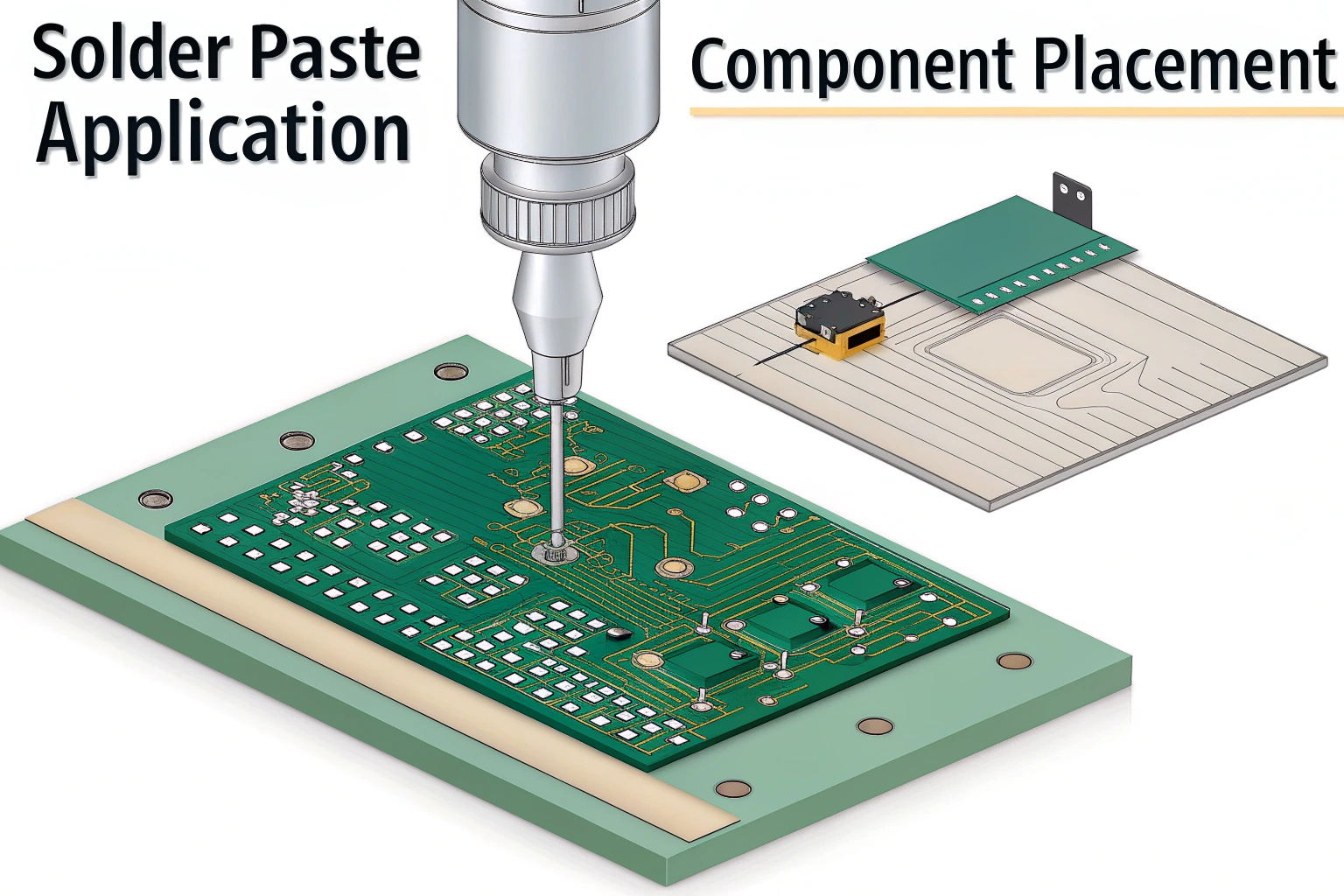

Solder Paste Application
A stencil is used to apply solder paste (a mix of flux and tiny solder particles) to specific areas of the board where components will sit.

Component Placement
Using high-speed pick-and-place machines, surface-mount components are placed precisely on the board over the solder paste.

Reflow Soldering
The board is passed through a reflow oven. Controlled heat melts the solder paste, bonding the components to the board as it cools.

Through-Hole Component Insertion
For components that can’t be surface-mounted, holes are drilled and components are inserted manually or by machine.

Wave Soldering (for THT)
The board is run over a wave of molten solder that connects component leads to their pads.

Inspection and Testing
Using AOI (Automated Optical Inspection), X-ray inspection, or manual testing, each PCBA is examined to ensure quality and function.

Each step requires incredible precision. For a visual overview of this process, check out Tempo Automation’s PCBA guide.

Surface Mount Technology (SMT) vs Through-Hole Assembly (THT)

There are two main technologies used in PCBA:

Surface Mount Technology (SMT)

This is the most common technique today. Components are placed directly onto the surface of the PCB. SMT allows for compact, high-density boards ideal for smartphones, tablets, and laptops.

Through-Hole Technology (THT)

Used mainly for larger or high-stress components, THT involves inserting component leads through pre-drilled holes in the PCB. This method is more durable and still common in automotive or military electronics.

Modern PCBs often use a combination of SMT and THT, known as mixed assembly, to balance performance and reliability.

Why Inspection and Testing Are Critical

Even with automation, PCBA is vulnerable to defects like poor solder joints, misaligned components, or incomplete connections. That’s why every board must go through rigorous inspection.

AOI (Automated Optical Inspection) checks for missing or misaligned parts.

X-ray inspection is used to view solder joints beneath BGAs (Ball Grid
Arrays). ICT (In-Circuit Testing) verifies electrical continuity.

Functional testing ensures the board behaves as expected in real-world conditions.

Without these quality checks, a single faulty PCBA could cause an entire product to fail. According to PCB Directory, inspection accounts for up to 30% of PCBA production time in high-reliability industries.

Common Challenges in PCBA

The PCBA process might seem straightforward, but several issues can affect yield and quality:

• Solder bridging (shorts between adjacent pads)
• Cold solder joints (poor heat during soldering)
• Component misplacement due to stencil alignment errors
• Delamination of the PCB due to improper heating
• Static discharge damage to sensitive components

Addressing these challenges requires not only precise machinery but also well-trained technicians and robust design files. Learn how to minimize PCBA defects with this checklist from Sierra Circuits.

Conclusion

The Printed Circuit Board Assembly (PCBA) process is where raw boards turn into functioning electronic systems. From solder paste to inspection, every step in the process contributes to the performance and reliability of the final product.

Whether you’re a product developer, hardware engineer, or electronics hobbyist, understanding how PCBA works can help you make smarter design decisions and troubleshoot manufacturing issues more effectively.

With modern automation, quality control, and material science, PCBA continues to evolve—supporting the fast-moving world of electronics innovation.
