Circuit board testing methods are critical for verifying functionality before a product reaches the market. But what testing methods are used, and why do they matter in ensuring reliability and performance?

Circuit board testing is a multi-step process designed to catch errors and ensure every assembled board functions correctly. From visual inspections to powered functional tests, each method helps guarantee quality.

Whether you’re building a prototype in a garage or managing production for a global hardware brand, circuit board testing is not optional. It’s a key part of modern electronics manufacturing—one that separates functional devices from future e-waste. Testing helps you catch soldering defects, incorrect components, open circuits, or damaged connections before they cause downstream failure.

In this guide, we’ll walk through the most common circuit board testing methods, when to use them, and how to integrate them into your PCBA process effectively.

Why Circuit Board Testing Matters

Imagine you’re mass-producing a wearable device. Everything looks perfect: the PCB design passed simulations, the layout was verified, and components arrived on time. But once powered, 20% of units fail due to inconsistent solder joints and one misoriented diode. The only way to prevent that failure from reaching your customers is through testing.

Testing identifies errors that machines or operators might miss—such as tombstoned capacitors, solder bridges under a BGA, or even incorrect firmware flashing. In regulated industries like medical, aerospace, or automotive, testing is legally required before a product goes to market.

Testing also helps reduce the cost of post-sale repairs, customer complaints, and negative brand impact. In short, testing saves money and builds trust.

Common Testing Methods in PCBA

While testing strategies vary by manufacturer and application, there are a few widely used testing methods in the industry. Each one targets different stages of the production cycle.

Automated Optical Inspection (AOI)

AOI is usually the first checkpoint after SMT placement and reflow. High-resolution cameras scan the board and compare it to a reference image to detect missing components, misalignments, or incorrect polarity. It’s fast, accurate, and perfect for high-speed assembly lines.

However, AOI only “sees” the surface. It cannot detect issues beneath components like BGAs, or check internal electrical performance.

In-Circuit Testing (ICT)

ICT uses a fixture with spring-loaded pins (bed-of-nails) that contact designated test pads on the PCB. It measures electrical parameters of each component—like resistance, capacitance, or signal continuity. ICT doesn’t require the board to be powered and is great for catching soldering issues or misplaced parts.

Because building the fixture is expensive, ICT is most cost-effective for high-volume production.

Functional Testing (FCT)

FCT powers up the board and simulates real-world use cases. It verifies whether firmware loads, communication ports work, and output signals respond as expected. This test mimics how the customer will use the product.

It’s typically the final test before packaging and shipment.

Flying Probe Testing

Flying probe is similar to ICT but doesn’t use a fixture. Instead, robotic arms move probes across the board to touch test points. It’s ideal for prototypes or low-volume runs where creating an ICT fixture isn’t economical.

It may take longer per board, but offers greater flexibility for quick iterations.

X-Ray Inspection

Used mostly for hidden joints (e.g. under BGAs or multilayer vias), X-ray inspection looks through the board to check for voids, bridges, or cold joints. It’s essential for advanced PCBs with fine-pitch components.

Want to see how it looks in real time? Here’s an intro to X-ray inspection from Eurocircuits.

How to Choose the Right Test Strategy

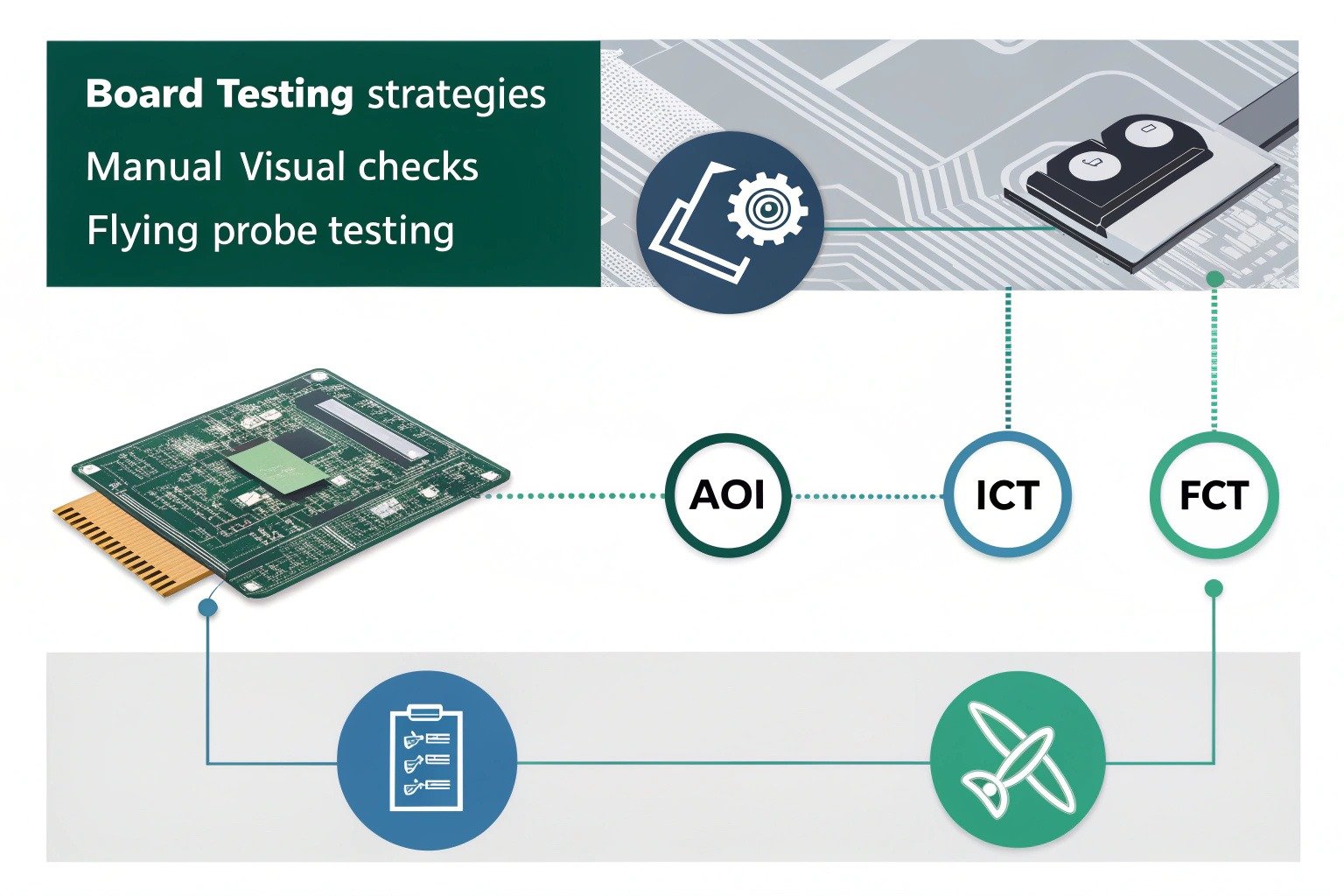

There’s no single “correct” way to test a board—only the right strategy for your product stage and goals. For a startup making early prototypes, manual visual checks and flying probe testing may be enough. But once you scale, you’ll want automated methods like AOI, ICT, and FCT integrated into your workflow.

To make a smart choice, ask:

• What’s the board complexity (multi-layer, BGA, mixed tech)?
• How many units are we building—5 or 5000?
• Is this a mission-critical application (like healthcare or automotive)?
• What’s our defect tolerance?

For production beyond 1000 units, combining AOI + ICT + FCT is the industry standard. And if your board has hidden joints or fine-pitch parts, consider adding X-ray inspection to the mix.

Working with an experienced manufacturer like Tempo Automation or JLCPCB ensures you get the testing method best matched to your volume and design.

When Testing Goes Wrong

Skipping or rushing through PCB testing has long-term consequences. If you catch an issue after the board is in a final product, you now have to deal with:

• Reverse logistics and recalls
• Costly rework or complete scrapping
• Customer dissatisfaction and reputation damage

Even worse, if a faulty board causes injury or mission failure, the legal and ethical impact is huge. That’s why smart hardware teams never treat testing as “optional.” They build it into the budget, the timeline, and the BOM—from the beginning.

Conclusion

Circuit board testing isn’t just a checkbox—it’s a safety net. Whether you’re making a wearable, a robot controller, or a satellite module, thorough testing ensures your boards leave the factory ready to perform.

By understanding AOI, ICT, flying probe, X-ray, and functional testing, you’ll be equipped to choose the right strategy, minimize risk, and build trust in your product.

A well-tested board doesn’t just work—it lasts. And in the world of electronics, that makes all the difference.
