PCB manufacturing relies on a combination of structural, conductive, insulating, and protective raw materials. These materials work together to form the electrical pathways, mechanical strength, and long-term reliability of a printed circuit board.

In factory production, raw material selection is not only a design choice but also a process decision. Material quality directly affects lamination stability, drilling accuracy, plating reliability, and final assembly performance.

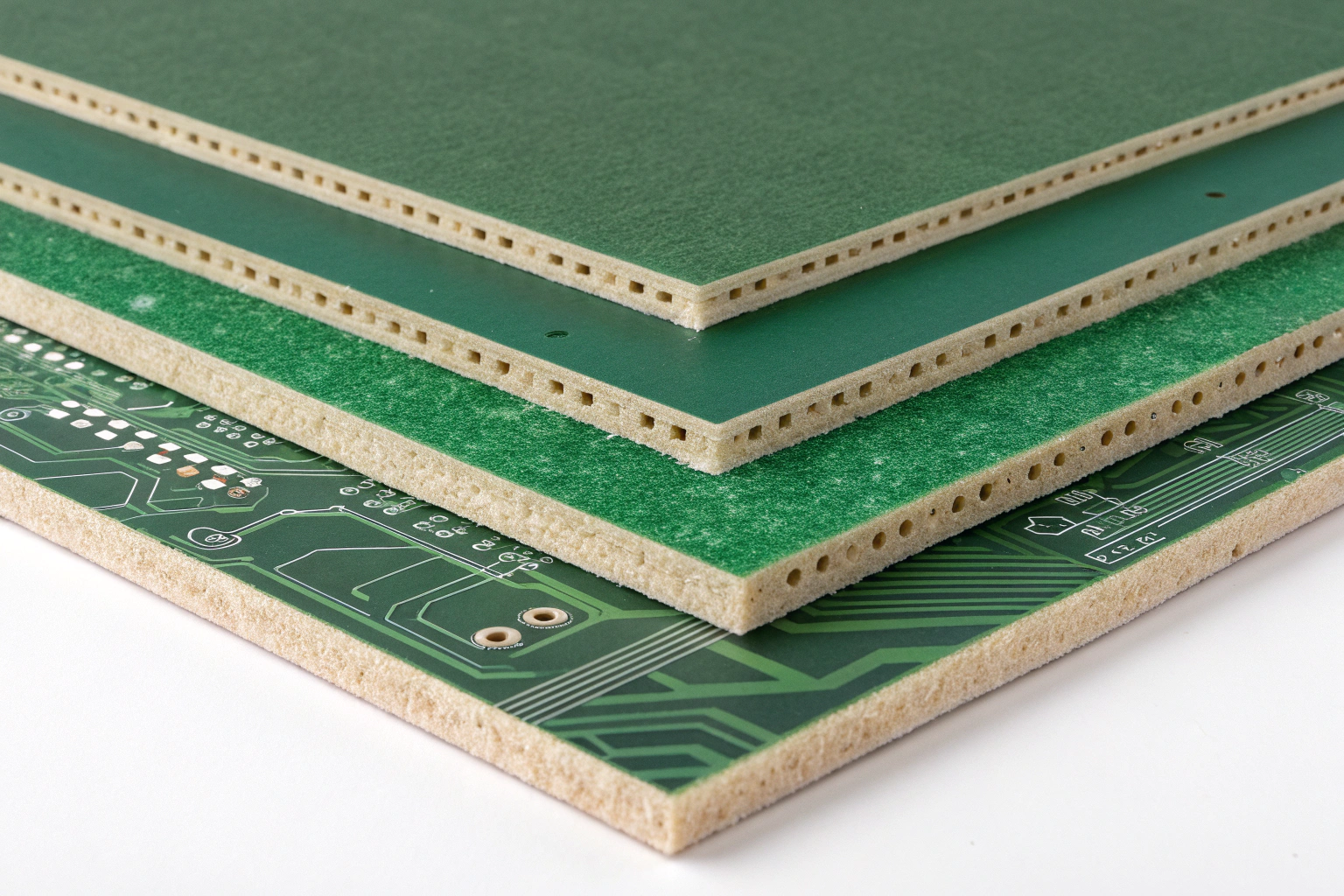

What base materials form the core of a PCB?

The core material is the structural foundation of the PCB.

The most widely used base material is FR-4, a glass-fiber–reinforced epoxy laminate. It offers good mechanical strength, electrical insulation, and thermal stability for most applications. Other base materials include high-Tg laminates, halogen-free materials, and high-frequency substrates.

In manufacturing workshops, laminates are inspected for thickness tolerance, resin content, and surface quality before use. Stable base materials ensure uniform lamination pressure and consistent board thickness, which are critical for multilayer PCB production.

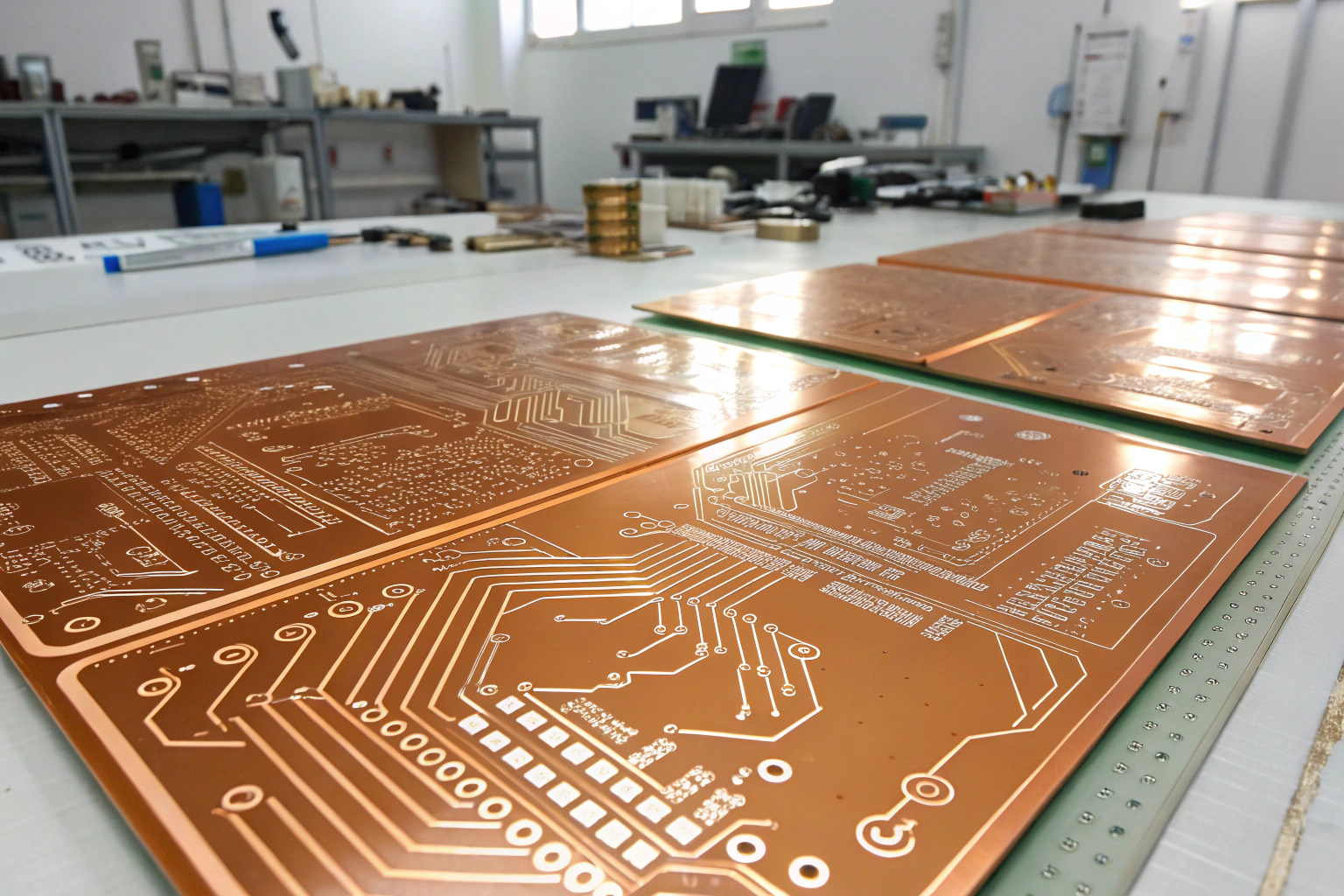

Why is copper foil essential in PCB manufacturing?

Copper foil forms the conductive pathways of the PCB.

Copper is laminated onto the base material to create signal traces, power planes, and ground planes. Common copper thicknesses include 0.5 oz, 1 oz, and 2 oz, depending on current requirements and mechanical strength.

In the factory, copper foil quality affects etching accuracy and adhesion. Uniform grain structure and controlled surface roughness help maintain trace integrity during imaging and etching. For multilayer boards, copper foil performance also influences interlayer bonding strength during lamination.

What role do prepreg materials play in multilayer PCBs?

Prepreg is a partially cured fiberglass resin sheet used to bond PCB layers together.

During lamination, prepreg melts and flows under heat and pressure, filling gaps between layers and solidifying into a strong insulating bond. Different prepreg types are selected based on resin content, thickness, and dielectric properties.

In manufacturing, prepreg storage and handling are strictly controlled. Moisture absorption or aging can affect resin flow, leading to voids or delamination. Consistent prepreg quality ensures reliable multilayer structures and stable dielectric performance.

How do solder mask materials protect the PCB?

Solder mask is a protective polymer coating applied over copper traces.

Its primary function is to prevent solder bridging during assembly and to protect copper from oxidation and contamination. Common solder mask colors include green, black, blue, and red, though green remains the most process-stable.

In the production line, solder mask viscosity, curing temperature, and alignment accuracy are carefully controlled. Proper solder mask coverage improves assembly yield and enhances long-term insulation reliability, especially in high-density designs.

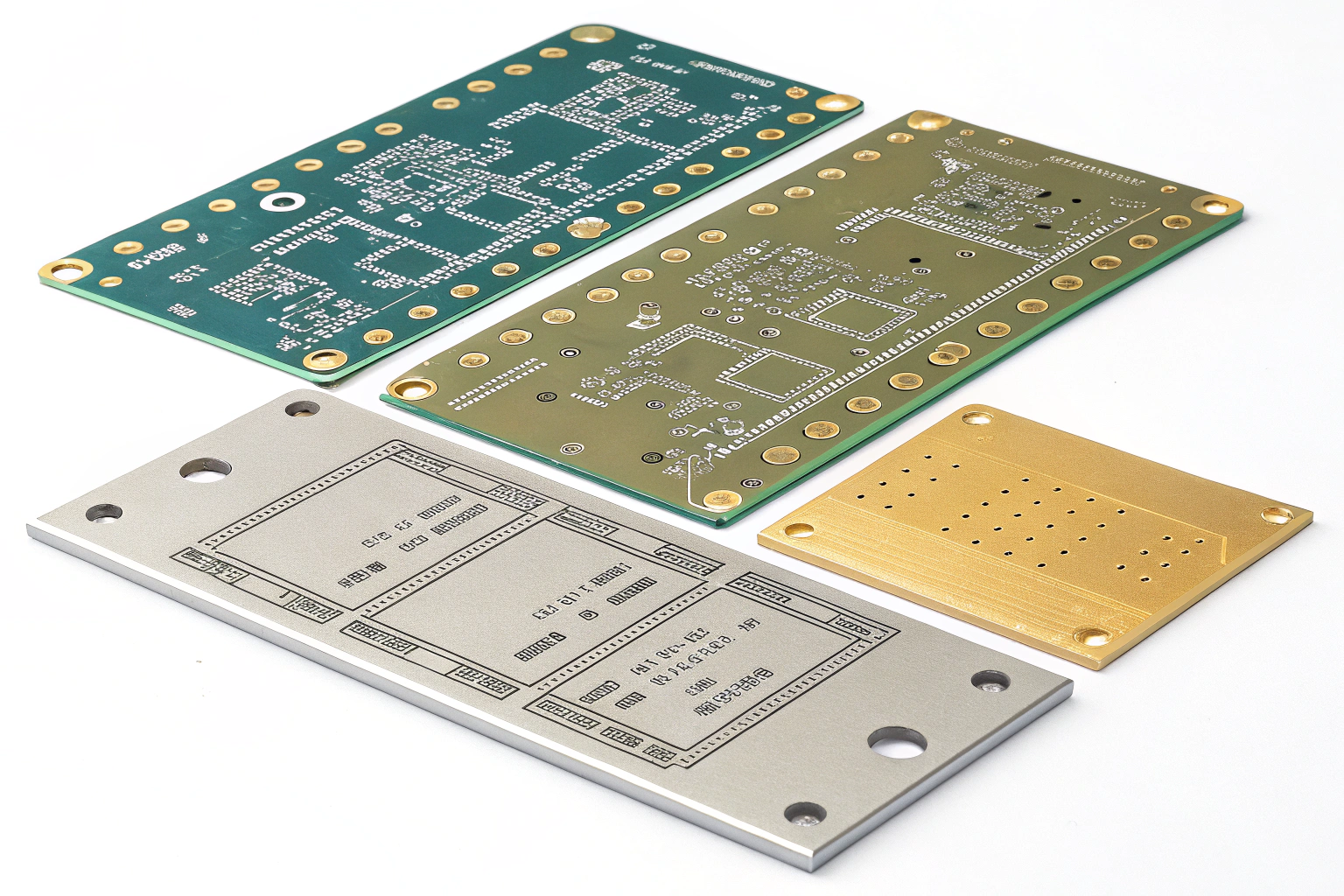

What surface finish materials are used on PCB pads?

Surface finish materials protect exposed copper pads and ensure good solderability.

Common finishes include ENIG (electroless nickel immersion gold), HASL (hot air solder leveling), OSP (organic solderability preservative), and immersion silver or tin.

Each finish uses different raw chemicals and metals. For example, ENIG uses nickel and gold layers, while HASL relies on tin-based solder. In factory processes, surface finish selection affects shelf life, assembly behavior, and inspection standards.

What auxiliary materials support PCB manufacturing processes?

Beyond core materials, PCB manufacturing depends on many auxiliary materials.

These include photoresists for imaging, chemical solutions for etching and plating, cleaning agents, drilling tools, and protective packaging materials such as anti-static bags and moisture barrier films.

Although these materials do not remain in the final PCB, they play a critical role in process stability and quality control. Proper chemical management and tool maintenance directly affect yield and consistency.

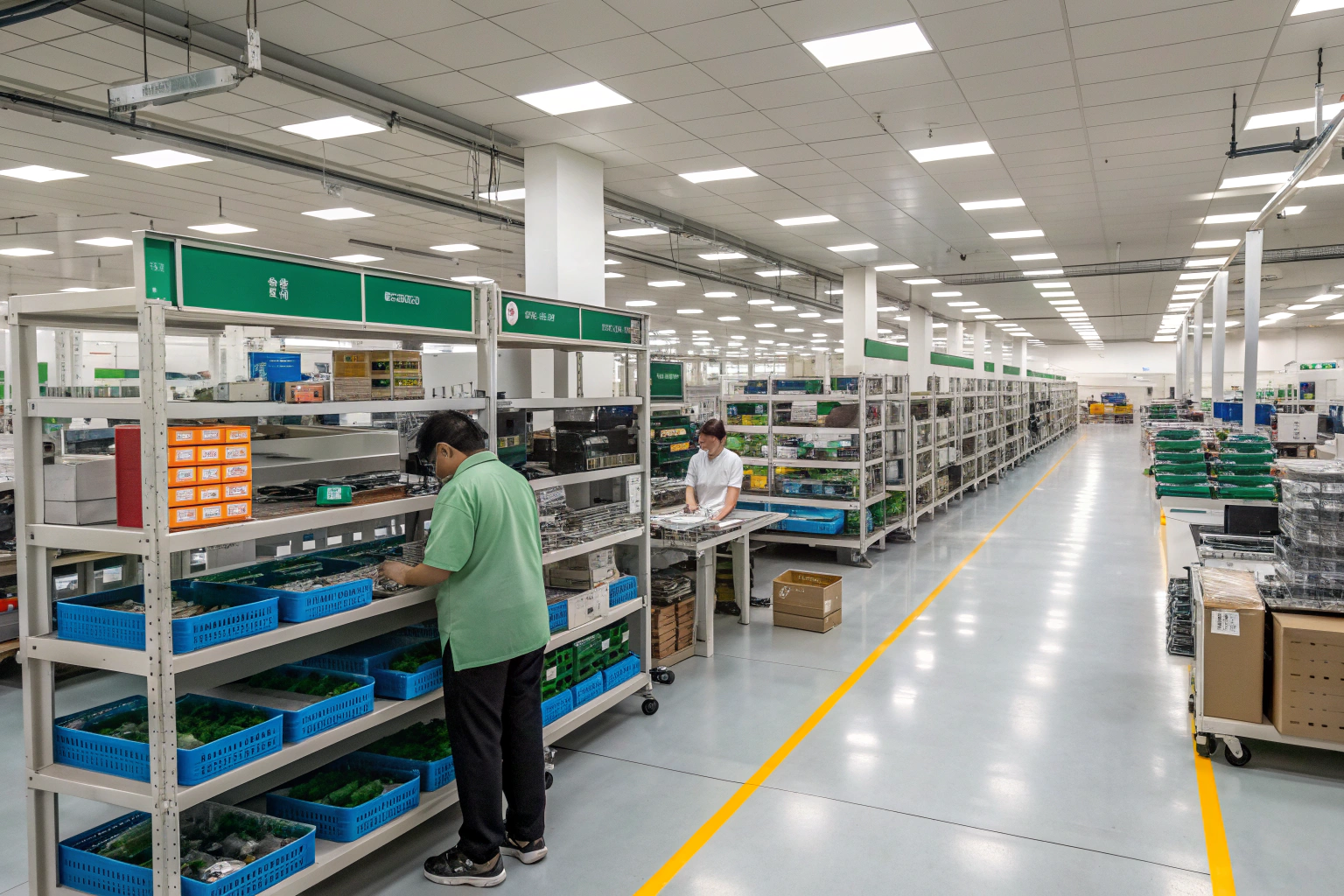

How does factory material control impact PCB quality?

Material control is a core responsibility of the manufacturing environment.

Factories implement incoming inspection, controlled storage conditions, batch tracking, and FIFO systems to maintain material stability. Temperature and humidity control in material warehouses prevents degradation before production.

Strong material management ensures that each production batch performs consistently, supporting reliable electrical testing results and smooth downstream assembly.

Conclusion

PCB manufacturing relies on a carefully selected set of raw materials, including laminates, copper foil, prepregs, solder mask, surface finishes, and process chemicals. Each material contributes to electrical performance, mechanical stability, and long-term reliability.

When these materials are managed and processed within a controlled factory environment, the result is a PCB with consistent quality, predictable behavior, and strong compatibility with assembly processes. High-quality raw materials, combined with disciplined manufacturing control, form the foundation of dependable printed circuit board production across the entire product lifecycle.
