A decoupling capacitor stabilizes the power supply of an electronic circuit by reducing voltage fluctuations, filtering noise, and providing instant current during fast switching events.**
Modern digital and mixed-signal PCBs rely heavily on stable power rails. High-speed ICs draw sharp bursts of current during switching, causing disturbances that spread through traces and affect nearby components. Decoupling capacitors prevent these disturbances and maintain clean power delivery across the entire board.
What is a decoupling capacitor?

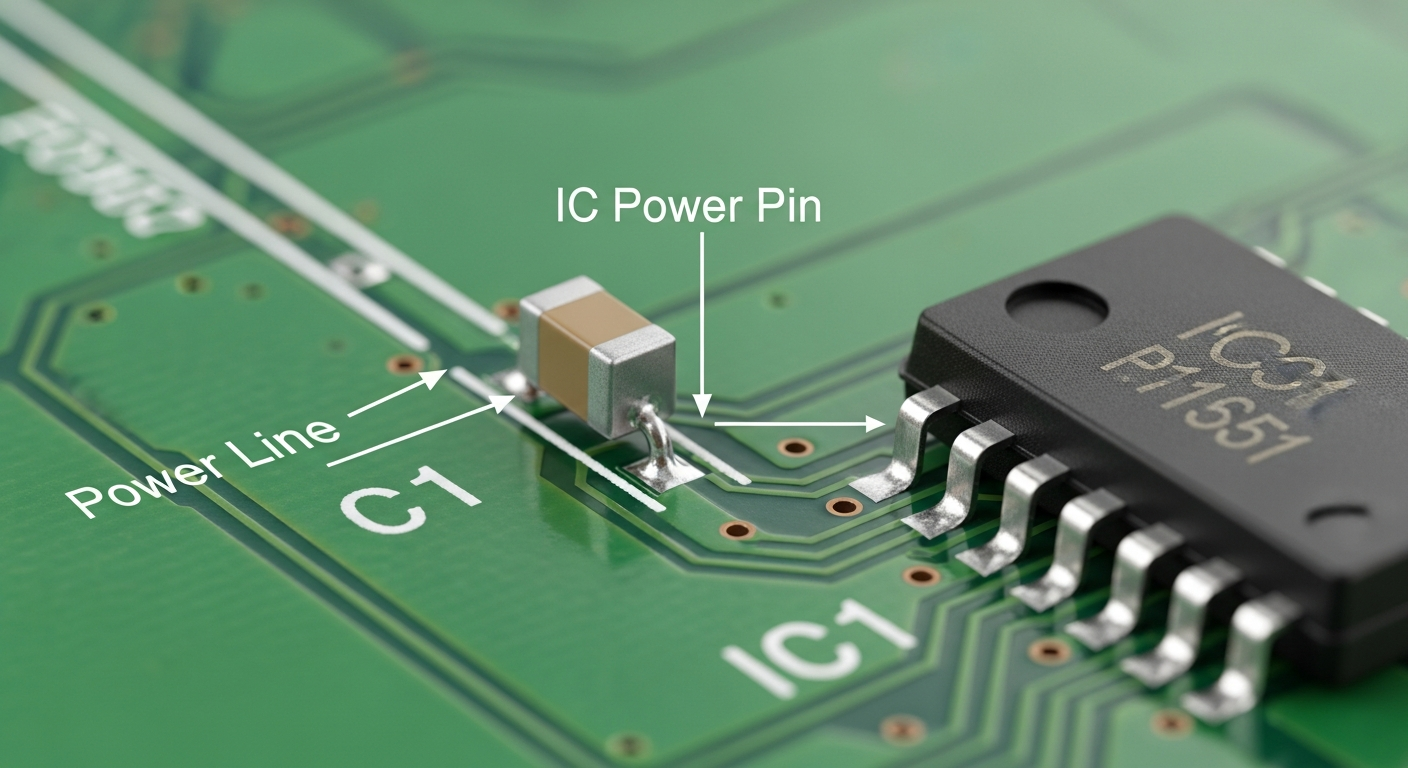

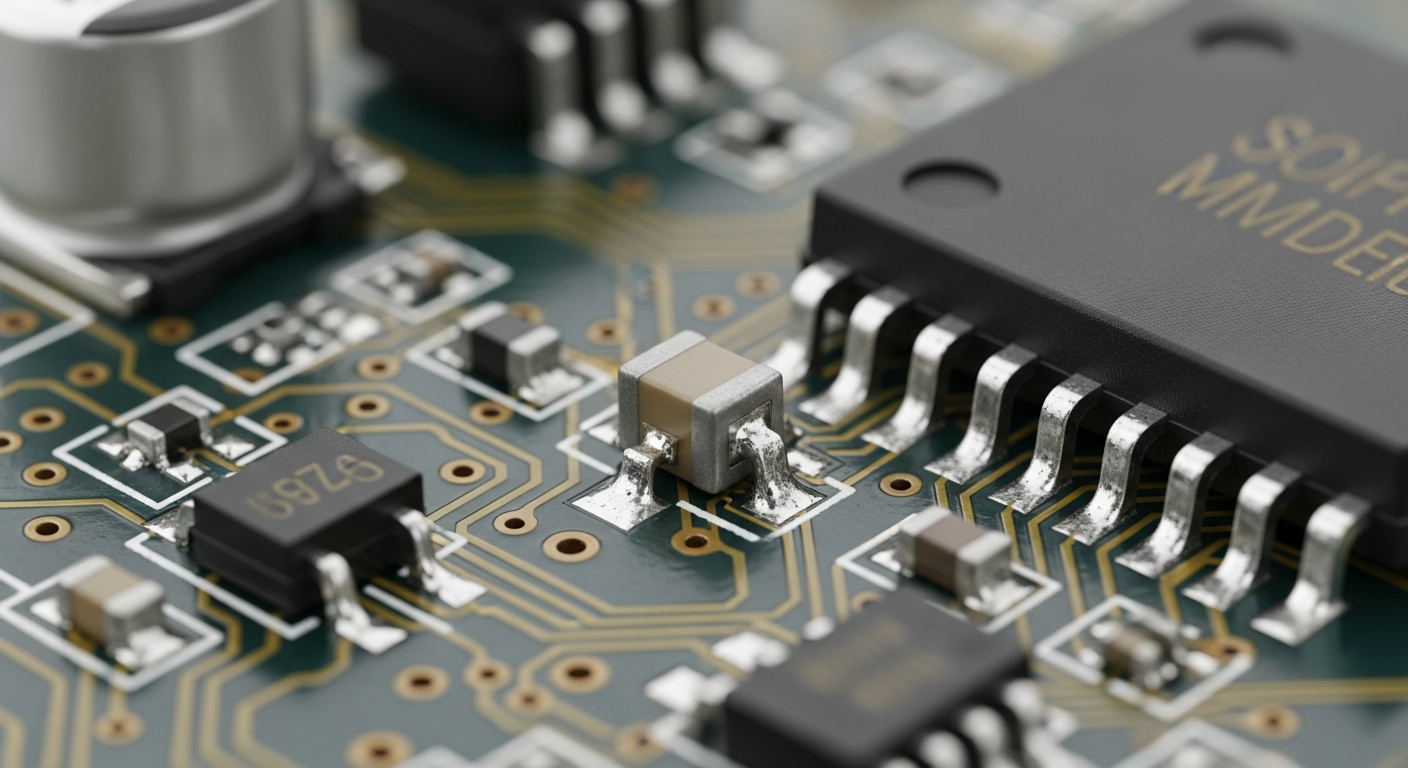

A decoupling capacitor is a capacitor placed close to an IC’s power pin to stabilize voltage.
A decoupling capacitor acts as a local energy reservoir that supplies instantaneous current to an IC while filtering noise from the power line.
Digital ICs, especially MCUs, FPGAs, and memory chips, generate noise when internal circuits switch. Without decoupling, voltage dips or spikes may cause logic errors, resets, or timing issues. The capacitor’s charge-discharge behavior smooths these variations.
Key characteristics
- Provides quick bursts of current
- Reduces ripple and noise
- Maintains stable supply voltage
- Improves overall system integrity
Stable power guarantees predictable behavior across varying load conditions.
How does a decoupling capacitor work?
Decoupling functions through rapid charge and discharge behavior.
A decoupling capacitor stores energy and releases it when fast switching events cause sudden demand, reducing voltage drops and absorbing noise from the supply network.
When a circuit switches, its instantaneous current demand rises sharply. Power traces have resistance and inductance, preventing immediate current delivery. The decoupling capacitor compensates for this delay.
Detailed operation
- The capacitor charges to the supply voltage during idle periods
- During switching, it discharges part of its stored energy into the IC
- It absorbs high-frequency noise from both the IC and external supply
- It recharges once the load stabilizes
This process happens millions of times per second in high-speed digital systems.
Why is a decoupling capacitor necessary?
High-speed ICs generate fast transients that can disrupt system behavior.
Decoupling capacitors prevent power instability, signal distortion, electromagnetic interference, and unexpected resets caused by voltage fluctuations.
Voltage instability increases error rates and reduces timing margins in digital communications. Sensitive analog sections can also suffer from noise coupling. Providing clean power improves reliability and performance.
Benefits to circuit stability
- Reduces voltage spikes and dips
- Prevents cross-talk between power domains
- Improves clock accuracy and logic switching
- Controls EMI and enhances EMC performance
Stable power is essential in telecommunications, computing, industrial control, and IoT systems.
Where should decoupling capacitors be placed?
Placement affects effectiveness significantly.

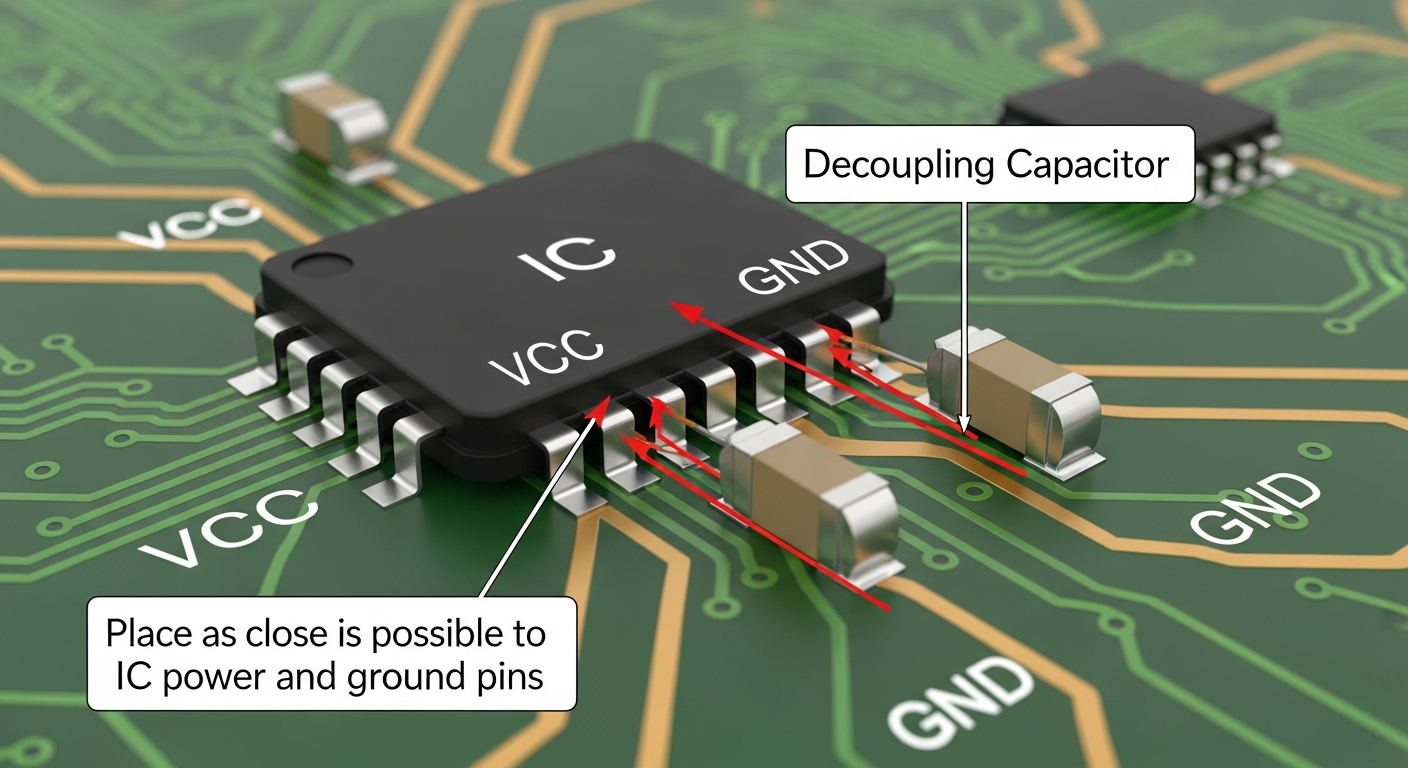

Decoupling capacitors should be placed as close as possible to the IC’s power and ground pins to minimize inductance and achieve the fastest response.
PCB traces act as inductors, slowing current delivery during fast transients. Short placement minimizes inductance and ensures efficient energy transfer.
Placement guidelines
- Locate capacitors on the same layer as the IC
- Use short, wide traces to reduce impedance
- Connect directly to the ground plane
- Use multiple values for broad frequency coverage
- Place one capacitor per power pin where possible
Good placement ensures maximum filtering performance.
What capacitor values are used for decoupling?
Different frequencies require different capacitance values.
Typical decoupling networks use a combination of 0.1 µF, 1 µF, 4.7 µF, and 10 µF capacitors to cover a wide frequency range.
High-frequency transients are handled by small-value ceramic capacitors, while larger values stabilize lower-frequency variations.
Common combinations
| Capacitance | Purpose |
|---|---|
| 0.1 µF | High-frequency noise suppression |
| 1 µF | Medium-frequency decoupling |
| 4.7–10 µF | Low-frequency stabilization |
| >10 µF | Bulk supply smoothing |
Dielectric type, ESR, and voltage rating also influence performance.
How do decoupling capacitors support PCB power integrity?
Power integrity depends on low noise and stable voltage rails.
Decoupling capacitors help maintain clean power distribution by lowering impedance, reducing ripple, and supporting transient current demands across the PCB.
As system clocks increase and ICs shrink, the need for strong power integrity becomes essential. Decoupling networks support clean supply rails even in dense, multi-layer designs.
Power integrity enhancements
- Lower impedance across a broad frequency range
- Limit simultaneous switching noise (SSN)
- Improve performance of high-speed interfaces like DDR, PCIe, USB
- Increase immunity to external EMI
This strengthens reliability in industrial, telecommunications, automotive, and high-performance computing hardware.
What happens if a circuit lacks proper decoupling?
The absence of adequate decoupling causes a wide range of failures.
Insufficient decoupling leads to voltage sag, EMI issues, logic malfunction, system instability, and accelerated component wear.
As circuits get faster, tolerance for supply noise decreases. Missing or poorly placed capacitors amplify electrical disturbances.
Common problems
- Random resets or crashes
- Signal distortion and jitter
- Failed high-speed communication links
- Overheating due to unstable current flow
- Increased electromagnetic emissions
Proper decoupling prevents these failures and ensures consistent field performance.
Conclusion
Decoupling capacitors are essential components for maintaining stable, noise-free power in modern electronic systems. Their ability to deliver instant current, suppress high-frequency noise, and support clean power rails ensures reliable operation for digital, analog, and mixed-signal circuits. Strategic placement, correct capacitor values, and thoughtful PCB design dramatically improve power integrity, protect sensitive components, and support long-term stability in both prototype and mass-production environments. With proper decoupling, advanced electronics can meet strict performance, EMI, and reliability requirements across industrial, consumer, and IoT applications.
