Printed Circuit Boards (PCBs) are the foundation of almost every electronic device. From smart home gadgets to industrial controllers, each product begins with a well-designed and precisely manufactured PCB.

The PCB manufacturing process involves multiple steps, including design, material preparation, imaging, etching, drilling, plating, solder mask, silkscreen, and final testing. Each stage determines the board’s quality and performance.

A clear understanding of each step helps engineers and product developers make better design decisions and ensure consistent product reliability. Let’s walk through the entire PCB manufacturing process in detail.

What is PCB manufacturing?

The process of turning a schematic design into a physical board ready for assembly.

PCB manufacturing is the process of converting a circuit design into a physical printed circuit board through precise imaging, etching, drilling, and surface finishing steps.

In PCB manufacturing, each step requires tight control of materials, temperature, and equipment calibration. Even small variations can affect the electrical performance. My factory follows IPC-A-600 and ISO9001 standards to ensure each board meets the highest quality level.

Step 1: PCB Design and DFM Check – Why is it important?

A poor design leads to production failures.

Design for Manufacturability (DFM) ensures that a PCB design can be produced efficiently and reliably without defects or delays.

Before production starts, engineers review Gerber, BOM, and drill files. They check track widths, pad sizes, hole tolerances, and copper spacing. This DFM step identifies potential risks such as short circuits or layer misalignment. In our factory, every incoming file is reviewed by a process engineer within 24 hours. This not only prevents costly rework but also speeds up prototype delivery.

Parameter	Typical Value	Purpose
Minimum Track Width	4 mil	Prevent short circuits
Minimum Hole Size	0.2 mm	Ensure drill accuracy
Copper Thickness	1 oz	Standard for signal layers

Step 2: Material Preparation and Inner Layer Imaging – How does the circuit appear on copper?

Without precise imaging, inner layers can misalign.

Inner layer imaging uses photoresist and UV light to transfer the circuit pattern onto copper-clad laminates.

The process starts by cleaning the copper surface. Then, a layer of photoresist film is applied. The film is exposed to UV light through the circuit artwork film. The exposed areas harden, while unexposed parts are removed with developer solution. The remaining copper forms the inner traces. These layers are later aligned and pressed to form a multilayer PCB. Our imaging machines can control alignment within ±0.025 mm, ensuring signal integrity even in high-speed boards.

Step 3: Etching and Lamination – How do we create multilayer boards?

Layers must be perfectly aligned for accurate signal paths.

Etching removes unwanted copper, and lamination bonds multiple layers together under heat and pressure.

After imaging, chemical etching removes excess copper, leaving only the desired circuit pattern. The etched inner layers are then stacked with prepreg (insulating layers) and outer copper foils. This stack is laminated using high temperature and pressure to form one solid board. The key challenge is maintaining layer alignment and preventing air bubbles. Our factory uses vacuum lamination to achieve uniform pressure and avoid delamination, even in complex 8–12 layer PCBs.

Step 4: Drilling and Plating – How are the holes connected electrically?

Precise drilling connects layers together.

Drilling creates vias and component holes, which are then plated with copper to form electrical connections.

CNC drilling machines create thousands of micro and through-holes with micron precision. After drilling, the board goes through a desmear process to clean hole walls. Then, electroless copper plating deposits a thin conductive layer, followed by electroplating to thicken it. This process connects the inner layers electrically. With our ±0.05 mm tolerance control, we ensure strong via reliability for both prototype and mass production boards.

Process Step	Description
Drilling	Create holes for vias and components
Desmear	Clean hole walls after drilling
Copper Plating	Deposit conductive layer for connectivity

Step 5: Solder Mask and Silkscreen – How is the board protected and labeled?

Without protection, copper traces can short or corrode.

Solder mask covers copper surfaces to prevent oxidation and short circuits, while silkscreen adds labels and component markings.

The green solder mask not only protects the copper but also defines the soldering areas. We use LPI (Liquid Photoimageable) solder mask to achieve high accuracy around fine-pitch components. After curing, a white silkscreen layer is printed for reference designators, logos, and polarity marks. This helps assembly engineers during component placement and quality inspection.

Step 6: Surface Finish and Final Testing – How do we ensure reliability?

The finish affects solderability and long-term stability.

Surface finish such as ENIG, HASL, or OSP protects exposed copper pads and improves soldering quality. Testing verifies that every circuit performs as designed.

Different surface finishes serve different purposes: ENIG offers flat pads for fine-pitch ICs, HASL is cost-effective, and OSP suits short-lifecycle boards. After finishing, each PCB undergoes AOI (Automatic Optical Inspection) to check trace integrity. Electrical tests then confirm all nets are connected correctly. In our factory, every board comes with a complete test report including AOI images and FCT (Functional Circuit Test) results. This final stage ensures zero-defect delivery to our customers.

Finish Type	Advantage	Typical Use
ENIG	High solderability	Fine-pitch SMT
HASL	Cost-effective	Standard boards
OSP	Flat and clean	Short lifecycle products

Step 7: Quality Control, Packaging, and Shipping – How do boards reach customers safely?

Packaging is as important as production quality.

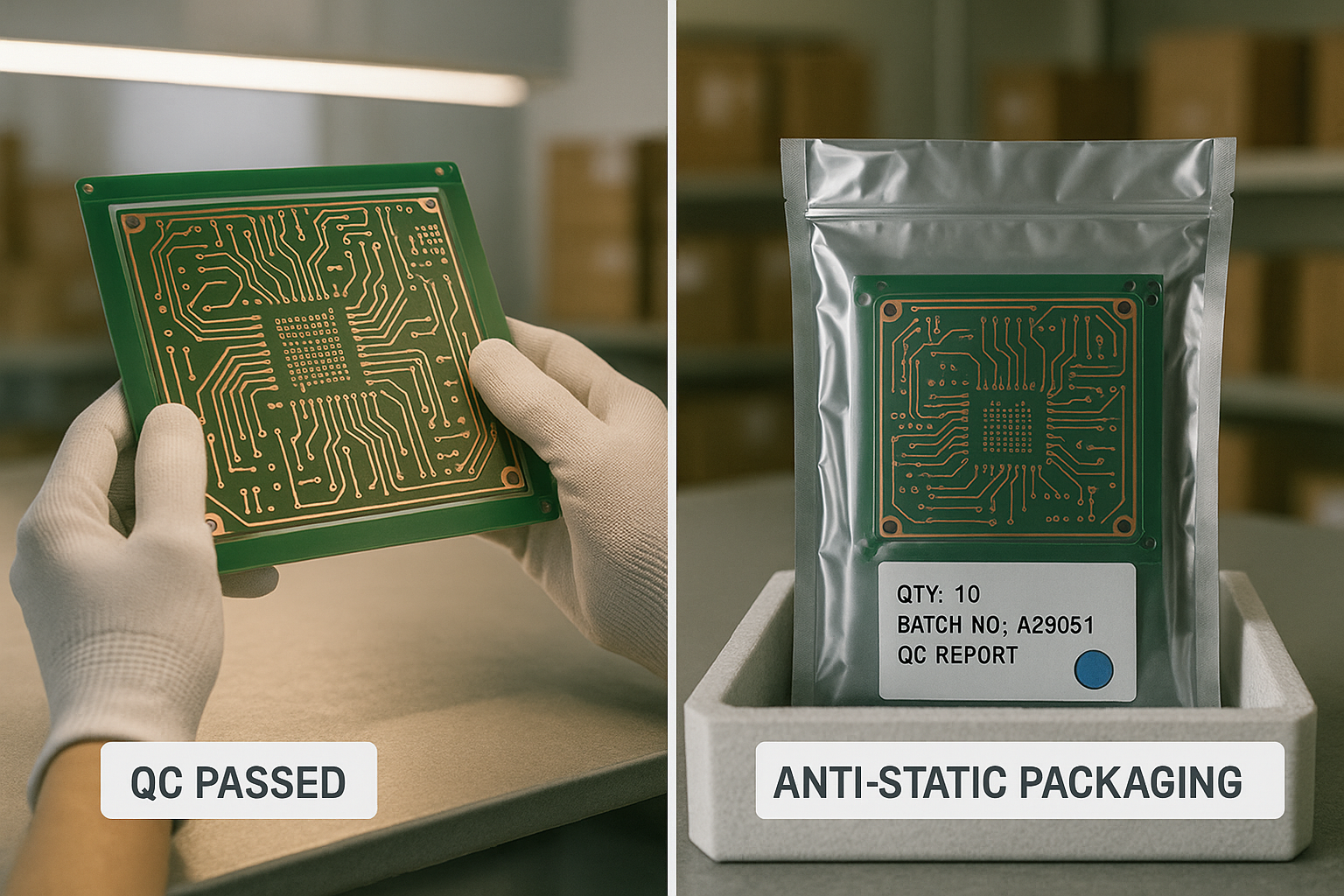

Each PCB passes through quality control checks before being vacuum-sealed, labeled, and packed in anti-static bags for safe delivery.

Before shipment, visual inspection ensures there are no scratches, burrs, or stains. Boards are vacuum-packed with desiccants to prevent moisture absorption. Each package includes a test report, quantity label, and batch number for traceability. I always remind my team that final inspection is our last defense for quality. Even for small prototype runs, we treat every board with the same standard as high-volume production.

Conclusion

PCB manufacturing is a precise and multi-step process that combines engineering, chemistry, and craftsmanship. From design verification to final inspection, every detail determines the final product’s reliability. In our factory, I take pride in ensuring that every PCB we produce not only meets but exceeds customer expectations for performance and quality.
